ABB E204/125R Switch Disconnector
ABB E204/125R Switch Disconnector

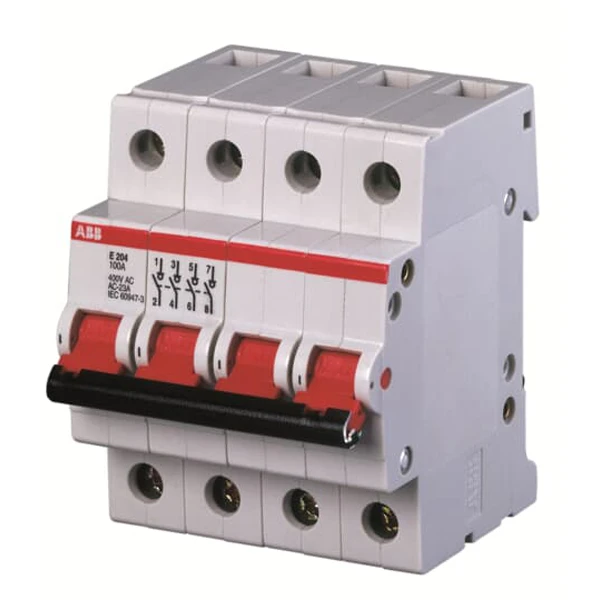

ABB E204/125R Switch Disconnector - Image 2

ABB E204/125R Switch Disconnector

£162.94 Incl. VAT

ABB 2CDE284001R0125 4 Pole 125A modular switch disconnector suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. The E204/125R System pro M compact switch disconnector features fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labelling system ILS. Locking device as accessories for unauthorized ON/OFF. · · · Colour: Grey · · Current Rating: 125A · · Height: 85mm · · Range: System pro M compact · · Width: 70mm · · Weight: 390g · · Depth: 69mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDE284001R0125 Category: Brand: Product Code: 2500242528

Description

Technical Specifications  Technical Specifications Main switch for distribution board Rated current 125 A Rated voltage 400 V Recess depth 70 mm Number of contacts as change-over contact 0.00 Max. lamp power – W Min. rated voltage – V Number of contacts as normally closed contact 0.00 Short-circuit breaking capacity (Icw) 6 kA Rated switching capacity – kA Number of contacts as normally open contact 4 Width in number of modular spacings 4 Number of poles 4 With indicator lamp No Forced segregation (according to DIN VDE 0113) No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587235 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1587236
