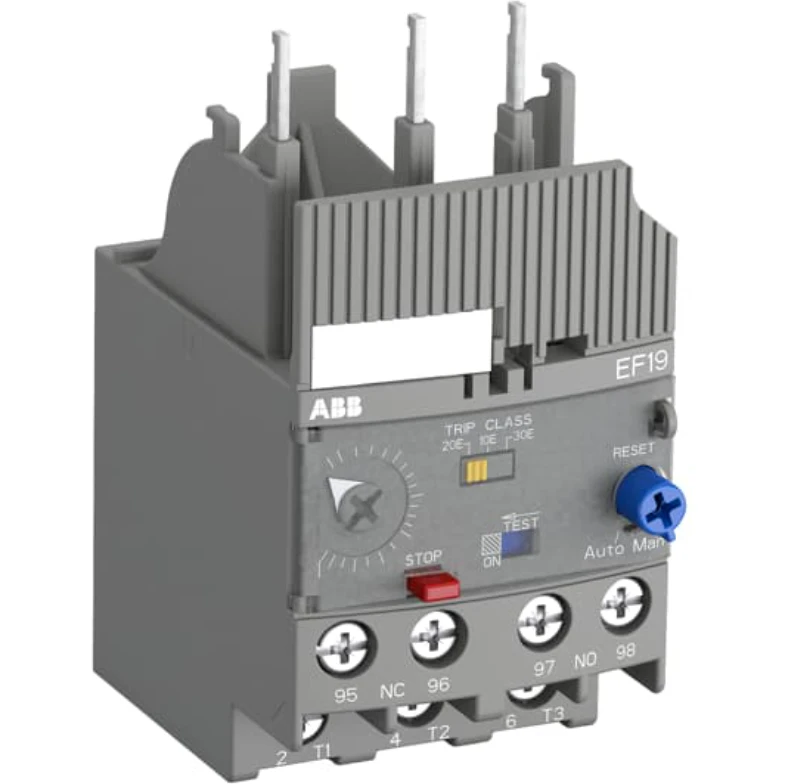

ABB EF19-18.9 Electronic Overload Relay
ABB EF19-18.9 Electronic Overload Relay
ABB EF19-18.9 Electronic Overload Relay - Image 2

ABB EF19-18.9 Electronic Overload Relay

£140.00 Incl. VAT

The EF19-0.32 Is An Self-Supplied Electronic Overload Relay, Which Means No Extra External Supply Is Needed. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. Easy To Use Like A Thermal Overload Relay And Compatible With Standard Motor Applications, The Electronic Overload Relay Is Convincing, Above All, Due To Its Wide Setting Range, High Accuracy, High Operational Temperature Range And The Possibility To Select A Trip Class (10E, 20E, 30E). Further Features Are The Temperature Compensation, Trip Contact (NC), Signal Contact (NO), Automatic- Or Manual Reset Selectable, Trip-Free Mechanism, STOP- And Test Function And A Trip Indication. The Overload Relays Are Connected Directly To The Contactors. Single Mounting Kits Are Available As Accessory.The EF19 And EF45 Have ATEX And IECEx Certification 1). 1) ATEX Is Valid For Products Produced From Week 42, 2014. IECEx Is Valid For Products Produced From Week 15, 2017. · · · Electronic Overload Relay · · Manual or Auto Reset · · Trip Class 10E,20E or 30E

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAX121001R1105 Categories: , Brand: Product Code: 2500385403

Description

Technical Specifications  Technical Specifications Electronic overload relay Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as change-over contact 0.00 Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at AC 50 Hz 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 0 – 0 V Adjustable current range 5.7 – 18.9 A Reset function push-button Yes Reset function automatic Yes Reset function input No · Technical Data Sheet – Click to Download
