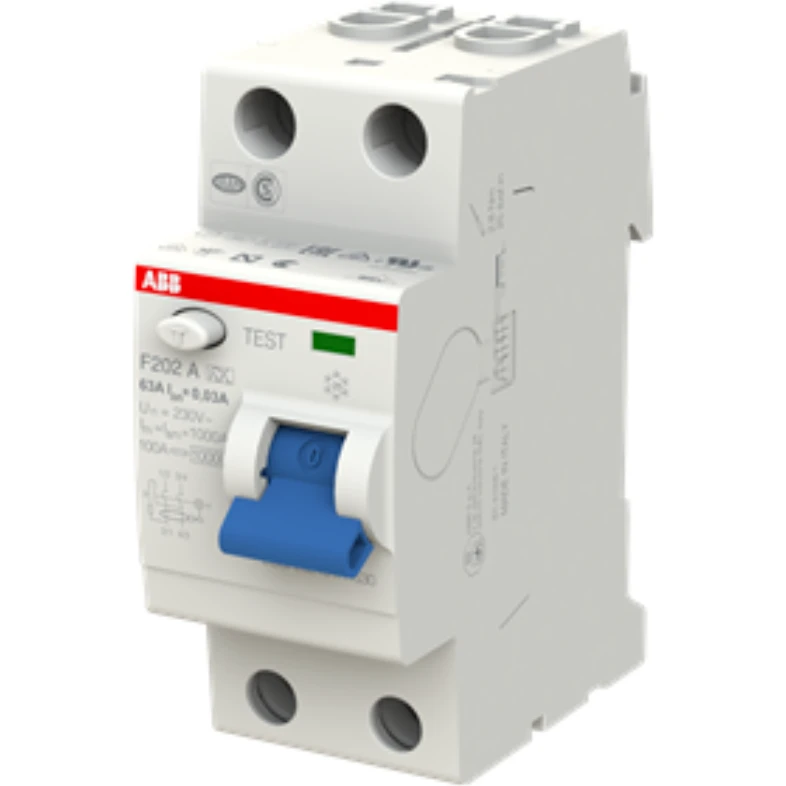

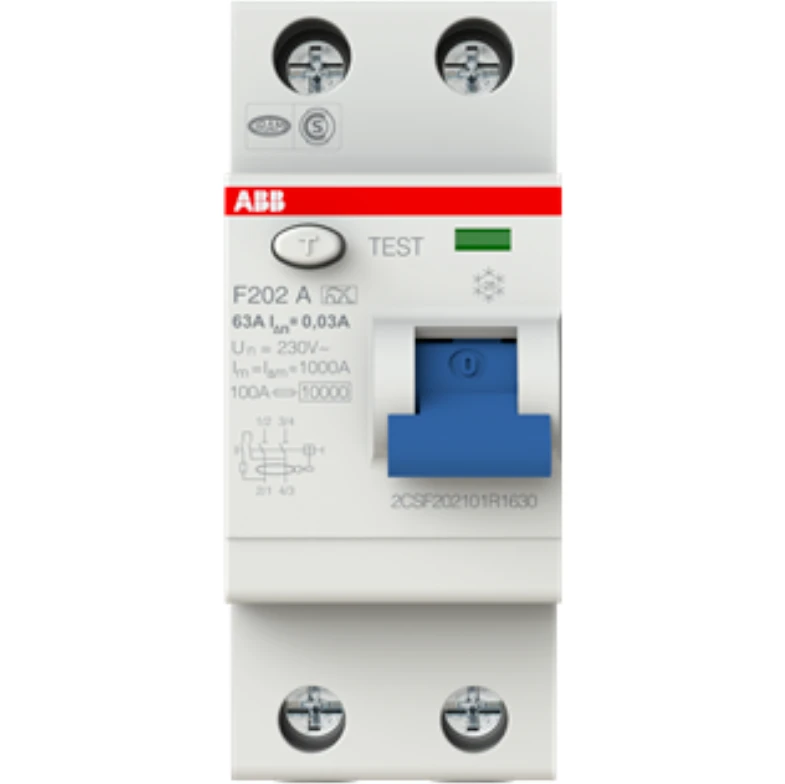

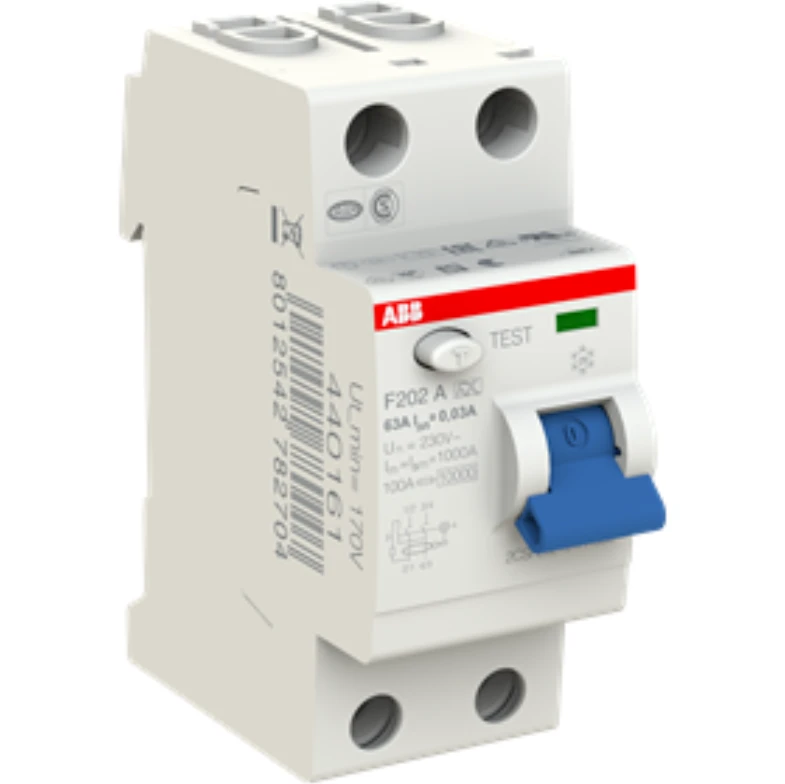

ABB F202 A-63/0.03 Residual Current Circuit Breaker
£310.22 Incl. VAT
The RCCBs F200 Series Assures Protection To People And Installations Against Fault Current To Earth. A Large Offer For Standard Instantaneous And Selective AC And A Types Is Completed With Some Configurations For Special Applications. · · · Residual Current Circuit Breaker · · 2 Pole · · 63 ampere
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Rated voltage 230 V Rated insulation voltage Ui 500 V Rated current 63 A Number of poles 2 Recess depth 69 mm Pollution degree 2 Rated fault current 0.03 A Short-circuit breaking capacity (Icw) 1 kA Surge current capacity – kA Width in number of modular spacings 2 Connectable conductor cross section multi-wired 0 – 25 mm² Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 25 – 25 mm² Explosion-proof No Ambient temperature during operating -25 – 55 °C Additional equipment possible Yes Short-time delayed tripping No With interlocking device Yes Selective protection No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595370 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595371 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595372 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595373 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595374
