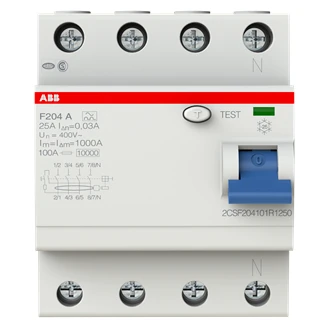

ABB F204 A-25/0.03 Residual Current Circuit Breaker

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Rated current 25 A Rated voltage 400 V Number of poles 4 Rated insulation voltage Ui 500 V Recess depth 69 mm Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 2 Width in number of modular spacings 4 Short-circuit breaking capacity (Icw) 1 kA Rated fault current 0.03 A Surge current capacity – kA Connectable conductor cross section multi-wired 0 – 25 mm² Connectable conductor cross section solid-core 25 – 25 mm² Ambient temperature during operating -25 – 55 °C Selective protection No Additional equipment possible Yes Explosion-proof No With interlocking device Yes Short-time delayed tripping No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595915 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595916 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595917 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595918 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595919
