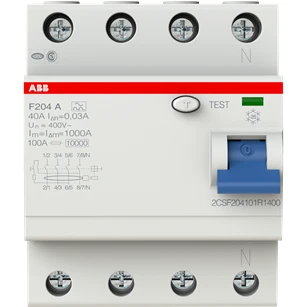

ABB F204 A-40/0.03 Residual Current Circuit Breaker
ABB F204 A-40/0.03 Residual Current Circuit Breaker
ABB F204 A-40/0.03 Residual Current Circuit Breaker - Image 2

ABB F204 A-40/0.03 Residual Current Circuit Breaker

£269.32 Incl. VAT

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. · · · F204 A-40/0,03 · · A type · · 30 mA · · 40 A · · 4 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CSF204101R1400 Category: Brand: Product Code: 2501055839

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Rated voltage 400 V Rated current 40 A Pollution degree 2 Rated insulation voltage Ui 500 V Number of poles 4 Width in number of modular spacings 4 Recess depth 69 mm Rated impulse-withstand voltage (Uimp) 4 kV Surge current capacity – kA Rated fault current 0.03 A Short-circuit breaking capacity (Icw) 1 kA Ambient temperature during operating -25 – 55 °C Connectable conductor cross section solid-core 25 – 25 mm² Connectable conductor cross section multi-wired 0 – 25 mm² Selective protection No Additional equipment possible Yes Explosion-proof No With interlocking device Yes Short-time delayed tripping No · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595922 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595923 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595924 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595925 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1595926
