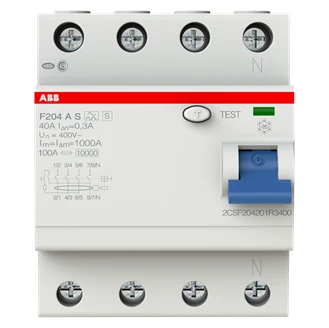

ABB F204 A S-40/0.3 Residual Current Circuit Breaker

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Rated current 40 A Rated voltage 400 V Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 500 V Number of poles 4 Width in number of modular spacings 4 Recess depth 69 mm Rated fault current 0.3 A Surge current capacity 5 kA Connectable conductor cross section multi-wired 0 – 25 mm² Short-circuit breaking capacity (Icw) 1 kA Connectable conductor cross section solid-core 25 – 25 mm² Ambient temperature during operating -25 – 55 °C Selective protection Yes Explosion-proof No Additional equipment possible Yes Short-time delayed tripping No With interlocking device Yes · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1596266 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1596267 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1596268 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1596269 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1596270
