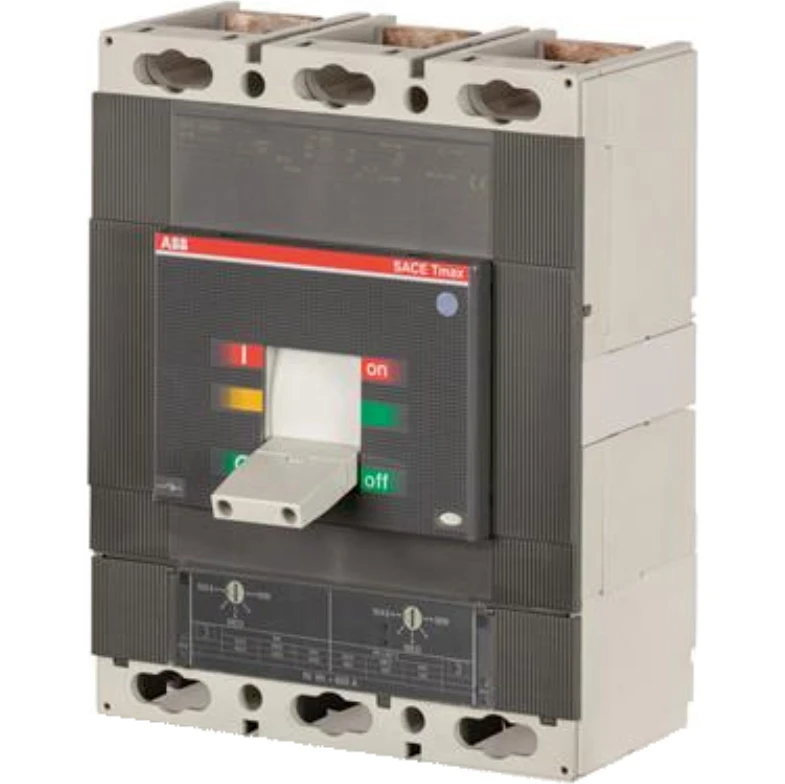

ABB MCCB T6N800Tma800-8000 TP 800A 36Ka Adj Thermal&Magnetic
ABB MCCB T6N800Tma800-8000 TP 800A 36Ka Adj Thermal&Magnetic
ABB MCCB T6N800Tma800-8000 TP 800A 36Ka Adj Thermal&Magnetic - Image 2

ABB MCCB T6N800Tma800-8000 TP 800A 36Ka Adj Thermal&Magnetic

£4,298.76 Incl. VAT

C.BREAKER TMAX T6N 800 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 800 I3=4000…8000 A · · · Moulded Case Circuit Breaker · · Control · · Connectivity · · Ease of use

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SDA060214R1 Product Code: 2500233597

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as normally open contact 0.00 Number of auxiliary contacts as normally closed contact 0.00 Number of auxiliary contacts as change-over contact 0.00 Rated permanent current Iu 800 A Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 36 kA Overload release current setting 560 – 800 A Adjustment range undelayed short-circuit release 4000 – 8000 A Adjustment range short-term delayed short-circuit release – – – A With integrated under voltage release No Rated voltage 690 – 690 V Integrated earth fault protection No Suitable for DIN rail (top hat rail) mounting No Motor drive optional Yes Motor drive integrated No DIN rail (top hat rail) mounting optional No Switched-off indicator available No Complete device with protection unit Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
