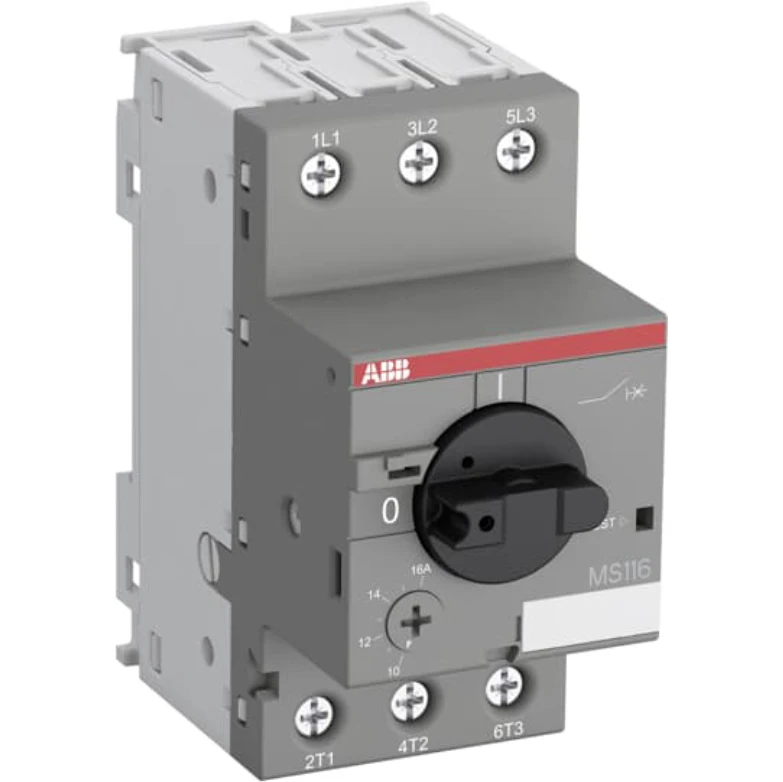

ABB MS116-1.0 Manual Motor Starter
£86.46 Incl. VAT
The MS116-1.0 Manual Motor Starter (Also Known As Motor Protection Circuit Breaker Or Manual Motor Protector) Is A Compact 45 Mm Width Device With A Rated Operational Current Of Ie = 1.0 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits, Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 50 KA At 400 VAC And Trip Class 10A. Further Features Are The Build-In Disconnect Function, Temperature Compensation, Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. Auxiliary Contacts, Signaling Contacts, Undervoltage Releases, Shunt Trips, 3-Phase Bus Bars, Power In-Feed Blocks And Locking Devices For Protection Against Unauthorized Changes Are Available As Accessory. · · · Manual Motor Starter · · Thermal and Short Circuit Protection · · Trip Free Mechanism
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Rated operation power at AC-3, 400 V 0.25 kW Rated permanent current Iu 1 A Rated operation power at AC-3, 230 V 0.25 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Number of poles 3 Depth 85.6 mm Height 90 mm Overload release current setting 0.63 – 1 A Adjustment range undelayed short-circuit release 12.5 – 12.5 A Rated operating voltage 690 – 690 V With thermal overload protection Yes Phase failure sensitive Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
