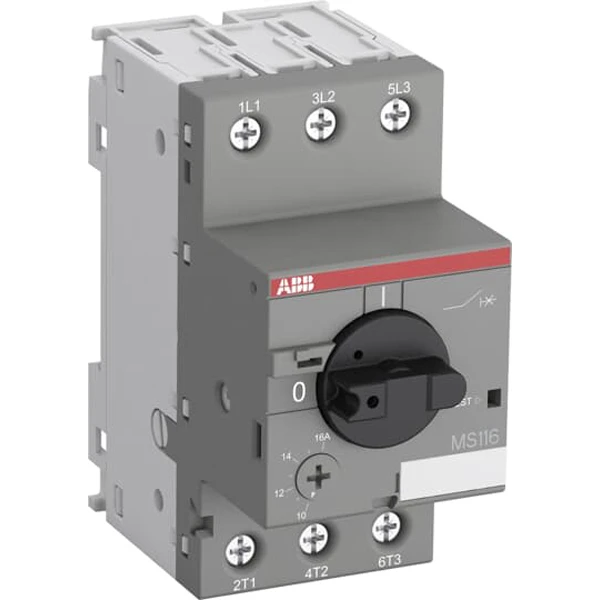

ABB MS116-1.6 Manual Motor Starter
£91.66 Incl. VAT
3 Pole manual motor starter with rotary handle and screw terminals. The MS116-1.6 manual motor starter is a compact 45mm width devices with a rated operational current of Ie = 1.6A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. · · · Height: 90mm · · Width: 45mm · · Weight: 265g · · Control Voltage: 600V AC · · Depth: 85.6mm · · IP Rating: IP20 · · Max Rating: 0.55kW · · Isolator: Yes
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Depth 85.6 mm Rated operation power at AC-3, 400 V 0.55 kW Rated permanent current Iu 1.6 A Rated operation power at AC-3, 230 V 0.55 kW Rated short-circuit breaking capacity Icu at 400 V, AC 100 kA Number of poles 3 Height 90 mm Overload release current setting 1 – 1.6 A Rated operating voltage 690 – 690 V With integrated auxiliary switch No With thermal overload protection Yes Adjustment range undelayed short-circuit release 20 – 20 A With integrated under voltage release No Phase failure sensitive Yes · Technical Data Sheet – Click to Download
