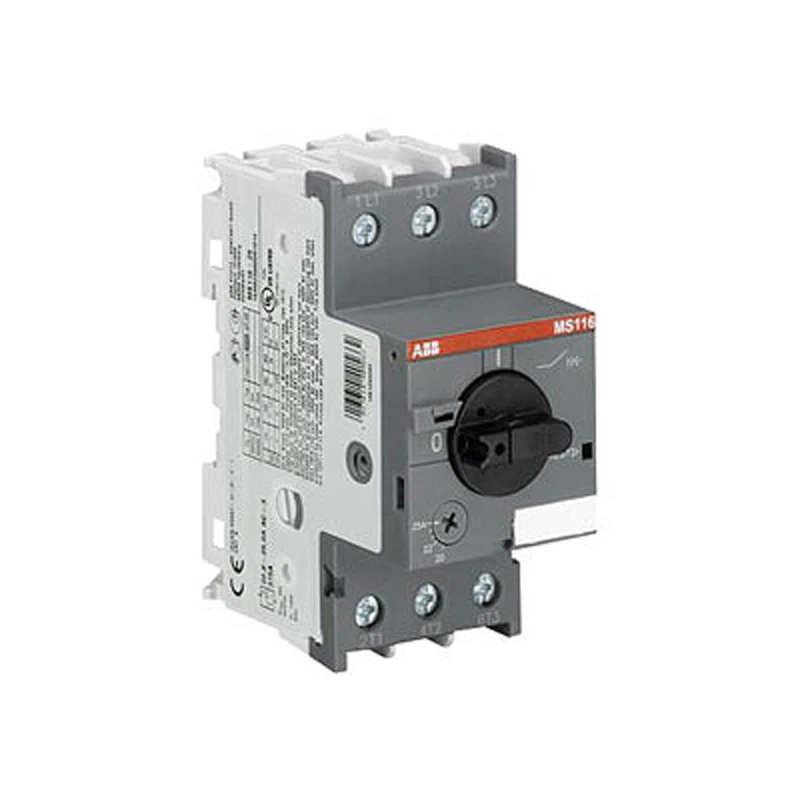

ABB MS116-20 Manual Motor Starter
ABB MS116-20 Manual Motor Starter
ABB MS116-20 Manual Motor Starter - Image 2

ABB MS116-20 Manual Motor Starter

£132.10 Incl. VAT

ABB MS116-20 3 Pole manual motor starter is a compact 45mm width device with a rated operational current of 20A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity 10kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. · · · Current Rating: 16-20A · · Height: 97.8mm · · Range: MS116 · · Width: 45mm · · Weight: 310g · · Depth: 86.55mm · · Reset Type: Manual

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAM250000R1013 Categories: , Brand: Product Code: 1051048605

Description

Technical Specifications  Technical Specifications Motor protection circuit-breaker Width 45 mm Rated operation power at AC-3, 400 V 7.5 kW Rated operation power at AC-3, 230 V 7.5 kW Rated permanent current Iu 20 A Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, AC 16 kA Height 97.8 mm Depth 85.4 mm Adjustment range undelayed short-circuit release 300 – 300 A Overload release current setting 16 – 20 A With thermal overload protection Yes Rated operating voltage 690 – 690 V Phase failure sensitive Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
