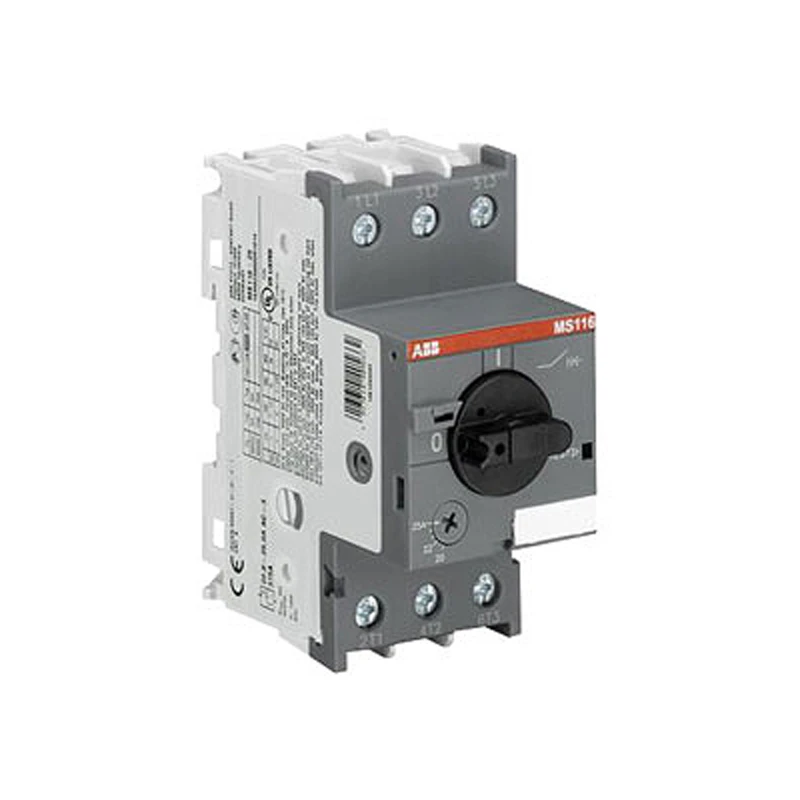

ABB MS116-32 Manual Motor Starter
£189.71 Incl. VAT
ABB MS116-32 3 Pole manual motor starter is a compact 45mm width device with a rated operational current of 32A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity 10kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. · · · Current Rating: 25-32A · · Height: 97.8mm · · Range: MS116 · · Width: 45mm · · Weight: 310g · · Depth: 86.55mm · · Reset Type: Manual
Out of Stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Rated operation power at AC-3, 400 V 15 kW Width 45 mm Rated operation power at AC-3, 230 V 15 kW Rated short-circuit breaking capacity Icu at 400 V, AC 16 kA Rated permanent current Iu 32 A Depth 85.4 mm Number of poles 3 Height 97.8 mm Overload release current setting 25 – 32 A Rated operating voltage 690 – 690 V Adjustment range undelayed short-circuit release 480 – 480 A With integrated auxiliary switch No Phase failure sensitive Yes With integrated under voltage release No With thermal overload protection Yes · Technical Data Sheet – Click to Download
