Industrial Controls

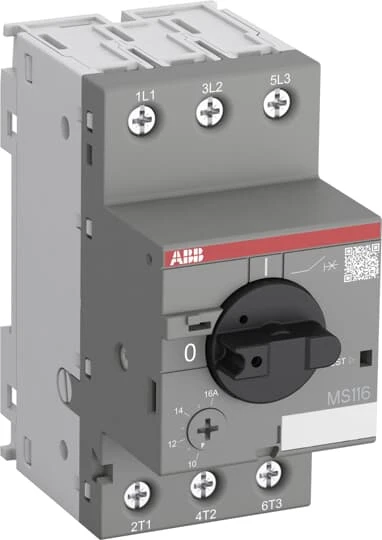

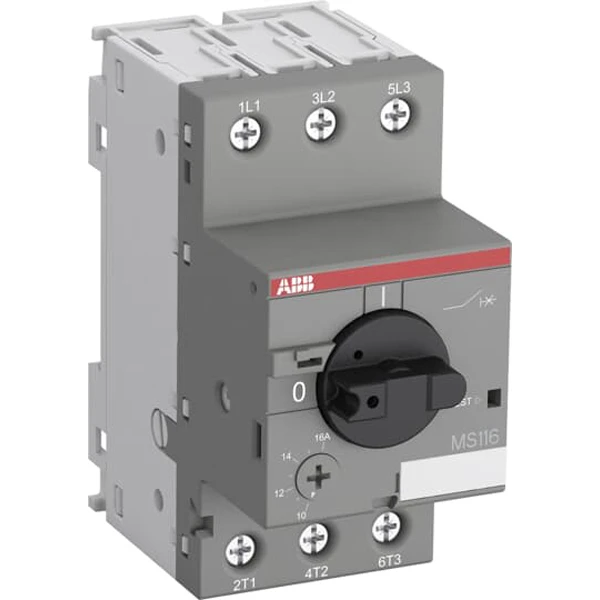

ABB MS116-4.0 Manual Motor Starter
Product code: 1SAM250000R1008Go Magpie Ref: 5060062332845
3 Pole manual motor starter is a compact 45mm width device with a rated operational current of 4A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity 50kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. · · · Current Rating: 2.5-4A · · Height: 90mm · · Range: MS116 · · Width: 45mm · · Weight: 265g · · Depth: 85.6mm · · Reset Type: Manual
£96.65inc VAT£80.54 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Number of poles 3 Rated operation power at AC-3, 400 V 1.5 kW Rated permanent current Iu 4 A Rated operation power at AC-3, 230 V 1.5 kW Depth 85.6 mm Rated short-circuit breaking capacity Icu at 400 V, AC 75 kA Overload release current setting 2.5 – 4 A Height 90 mm Rated operating voltage 690 – 690 V Adjustment range undelayed short-circuit release 50 – 50 A Phase failure sensitive Yes With thermal overload protection Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download
