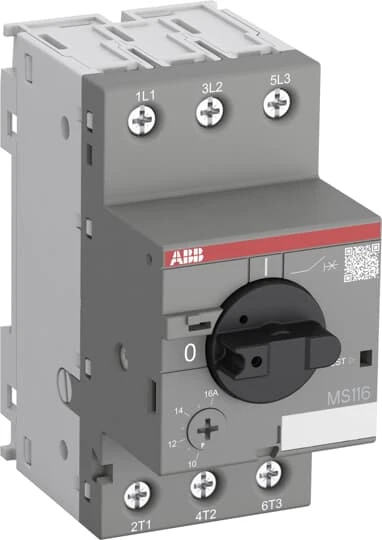

ABB MS116-6.3 Manual Motor Starter
£92.53 Incl. VAT
3 Pole manual motor starter is a compact 45mm width device with a rated operational current of 6.3A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity 50kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. · · · Current Rating: 4-6.3A · · Height: 90mm · · Range: MS116 · · Width: 45mm · · Weight: 265g · · Depth: 86.55mm · · Reset Type: Manual · · ISO M20
7 in stock
Description
Technical Specifications Technical Specifications Motor protection circuit-breaker Width 45 mm Depth 85.6 mm Height 90 mm Rated operation power at AC-3, 400 V 2.2 kW Rated permanent current Iu 6.3 A Rated operation power at AC-3, 230 V 2.2 kW Rated short-circuit breaking capacity Icu at 400 V, AC 75 kA Rated operating voltage 690 – 690 V Number of poles 3 Overload release current setting 4 – 6.3 A Adjustment range undelayed short-circuit release 78.8 – 78.8 A With thermal overload protection Yes Phase failure sensitive Yes With integrated auxiliary switch No With integrated under voltage release No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
