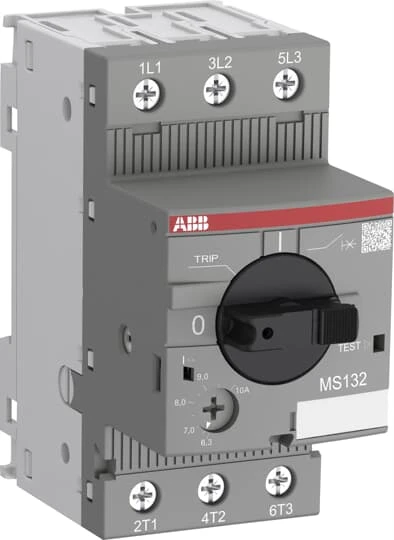

ABB MS132-1.6 Manual Motor Starter

3 Pole manual motor starter with rotary handle and screw terminals. The MS132-1.6 manual motor starter is a compact 45mm width devices with a rated operational current of Ie = 1.60A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 100kA at 400V AC and the trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single Phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3 Phase bus bars, power in-feed blocks are available as accessory. · · · Height: 90mm · · Width: 45mm · · Weight: 265g · · Control Voltage: 600V AC · · Depth: 86.75mm · · IP Rating: IP20 · · Max Rating: 0.55kW · · Isolator: Yes
