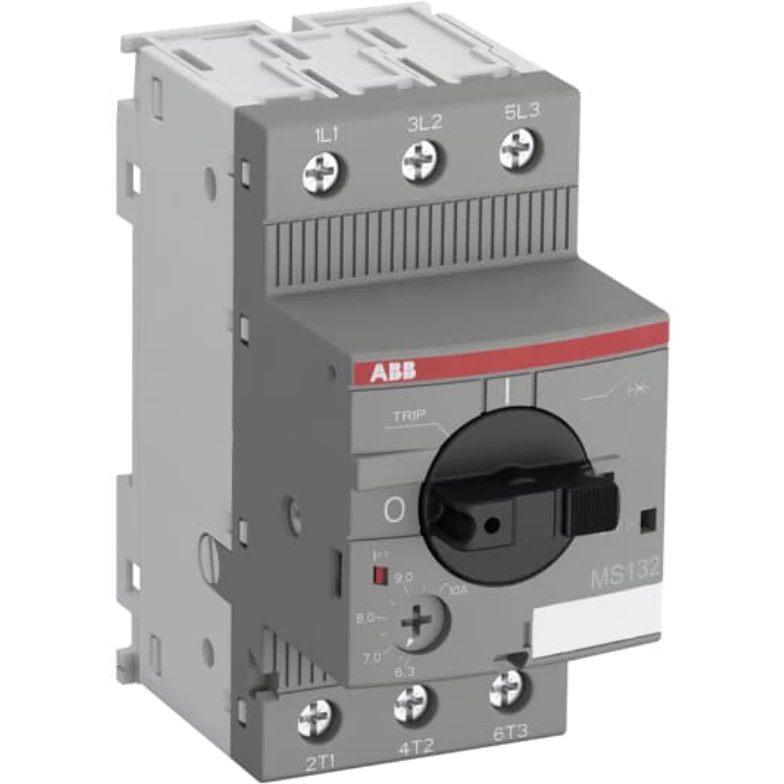

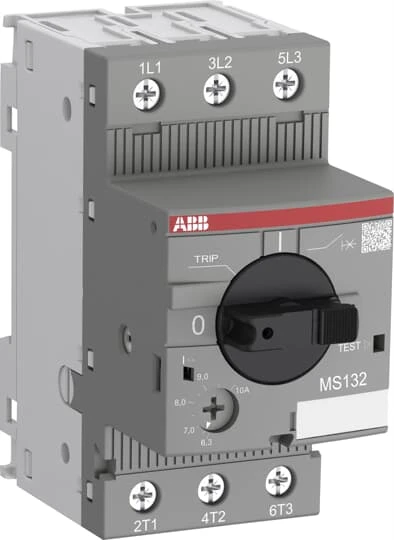

ABB MS132-2.5 Manual Motor Starter

The MS132-2.5 Manual Motor Starter (Also Known As Motor Protection Circuit Breaker Or Manual Motor Protector) Is A Compact 45 Mm Width Device With A Rated Operational Current Of Ie = 2.50 A. This Device Is Used To Manually Switch On And Off Motors And To Protect Them Reliably And Without The Need For A Fuse From Short-Circuits, Overload And Phase Failures. The Manual Motor Starter Offers A Rated Service Short-Circuit Breaking Capacity Ics = 100 KA At 400 VAC And Trip Class 10. Further Features Are The Build-In Disconnect Function, Temperature Compensation, Trip-Free Mechanism And A Rotary Handle With A Clear Switch Position Indication. The Manual Motor Starter Is Suitable For Three- And Single-Phase Applications. The Handle Is Lockable To Protect Against Unauthorized Changes. Auxiliary Contacts, Signaling Contacts, Undervoltage Releases, Shunt Trips, 3-Phase Bus Bars, Power In-Feed Blocks And Terminal Spacers Are Available As Accessory. · · · Manual Motor Starter · · Thermal and Short Circuit Protection · · Trip Free Mechanism · · It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 30mm mushroom shape. · · It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. · · It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. · · It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. · · Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
