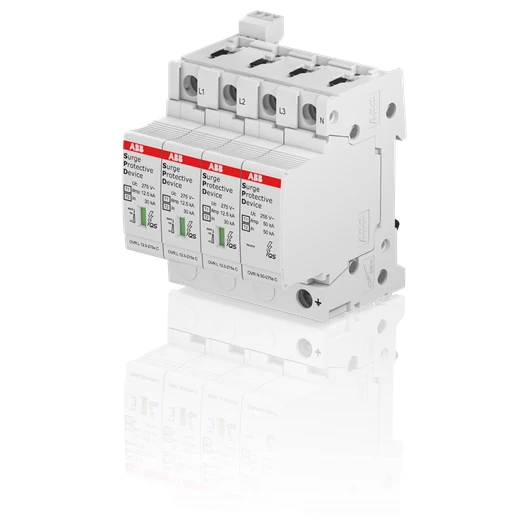

ABB OVR T1-T2 3N 12.5-275s P TS QS Surge Protective Device
ABB OVR T1-T2 3N 12.5-275s P TS QS Surge Protective Device
ABB OVR T1-T2 3N 12.5-275s P TS QS Surge Protective Device - Image 2

ABB OVR T1-T2 3N 12.5-275s P TS QS Surge Protective Device

£369.41 Incl. VAT

Type 1 + 2 SPDs have characteristics of type 1 but also type 2, they are capable of discharging a very high lightning current (T1 10/350s) and they have as well a low residual voltage (Up). They are installed in the main distribution switchboard but also in subdistribution board. Because of their power, Type 1 + 2 SPDs can let pass through a too high residual voltage, if the announced Up is not compatible with the withstand voltage of the equipment to protect or if the cable length to the equipment is longer than 10m, another level of coordination with OVR T2- T3, OVR T3 will be needed. Thanks to the patented Safety Reserve system, you can extend the lifespan of the installation plan maintenance to reduce downtime risk. · · · Patented QuickSafe technology · · Safety Reserve system · · Din rail mounting · · Back up protection up to 160 A Fuse or 125 A Mcb · · Integrated thermal disconnector · · End of life indicator · · 4 Protected Lines · · Protection Mode L-N/L-PE/N-PE · · UpTo 1.1kV

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CTB815710R0700 Categories: , , , , , Brand: Product Code: 2501057310

Description

Technical Specifications  Technical Specifications Combined surge arrester for power supply systems Voltage protection level – kV Number of poles 4 Lightning impulse current (10/350) – kA Nominal voltage DC – V Max. voltage (Uc) – V Max. continuous voltage DC – V Voltage protection level L-N 1.4 kV Nominal voltage AC – V Follow current extinguishing capability Ifi – kA Max. PV-voltage – V Max. conductor cross section solid (solid, stranded) – mm² Max. conductor cross section flexible (fine-strand) – mm² Voltage protection level L-PE 1.5 kV Voltage protection level N-PE 1.4 kV Voltage protection level (DC+ – DC-) – kV Specific energy (W/R) – kJ/Ohm Voltage protection level (DC+/DC- – PE) – kV Max. overcurrent protection device, series connection (fuse) – A Max. overcurrent protection device, parallel connection (fuse) – A Remote signalling Yes System configuration DC No System configuration TN-C No System configuration TN No System configuration IT No System configuration TN-C-S No System configuration TT Yes System configuration TN-S Yes Energy-coordinated protection effect with regard to the terminal equipment No Voltage switching spark gap technology No Overcurrent protected voltage tapping No System configuration other No Integrated backup fuse No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1600553 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1600554
