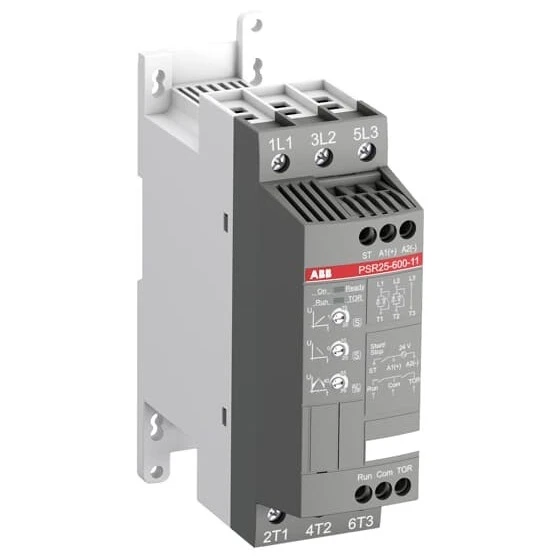

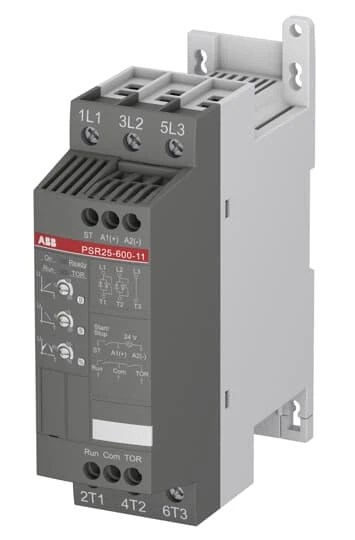

ABB PSR25-600-11 Soft Starter
ABB PSR25-600-11 Soft Starter
ABB PSR25-600-11 Soft Starter - Image 2
ABB PSR25-600-11 Soft Starter - Image 3
ABB PSR25-600-11 Soft Starter - Image 4

ABB PSR25-600-11 Soft Starter

£339.34 Incl. VAT

Softstarter PSR25-600-11 For Max 600V Main Voltage And 24V AC/DC Control Supply Voltage · · · TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Height: 58mm, Width: 45mm, Depth: 57mm, Weight: 180g · · It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Voltage Rating: 690V AC · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh). · · Voltage: 110V

2 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SFA896108R1100 Categories: , , Brand: Part Number: 2501041278

Description

Technical Specifications  Technical Specifications Soft starter Release class Adjustable Function Single direction Degree of protection (IP rating) IP20 Voltage type for actuating AC/DC Degree of protection (NEMA) 1 Rated operation current Ie at 40 °C Tu 25 A Rated control supply voltage at AC 50 Hz 24 – 24 V Rated operating voltage Ue 208 – 600 V Rated surrounding temperature without derating 40 °C Rated power three-phase motor, inline, at 230 V 5.5 kW Rated power three-phase motor, inline, at 400 V 11 kW Rated power three-phase motor, inside delta, at 230 V – kW Rated power three-phase motor, inside delta, at 400 V – kW Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at DC 24 – 24 V Torque control No Internal bypass Yes Integrated motor overload protection No Display No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572694 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572708
