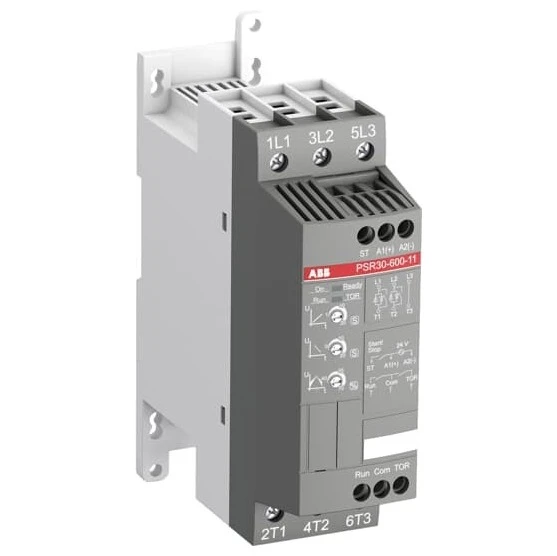

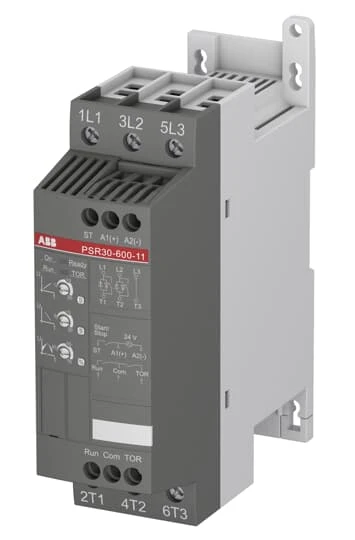

ABB PSR30-600-11 Soft Starter
ABB PSR30-600-11 Soft Starter
ABB PSR30-600-11 Soft Starter - Image 2
ABB PSR30-600-11 Soft Starter - Image 3
ABB PSR30-600-11 Soft Starter - Image 4

ABB PSR30-600-11 Soft Starter

£540.41 Incl. VAT

Softstarter PSR30-600-11 For Max 600V Main Voltage And 24V AC/DC Control Supply Voltage · · · TeSys K control relay, 4 contacts (3NO+1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. · · Width: 45mm · · It provides a low consumption 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. · · For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. · · Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

1 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SFA896109R1100 Categories: , , Brand: Part Number: 2501041279

Description

Technical Specifications  Technical Specifications Soft starter Release class Adjustable Function Single direction Degree of protection (IP rating) IP20 Degree of protection (NEMA) 1 Voltage type for actuating AC/DC Rated power three-phase motor, inline, at 230 V 7.5 kW Rated operating voltage Ue 208 – 600 V Rated surrounding temperature without derating 40 °C Rated operation current Ie at 40 °C Tu 30 A Rated power three-phase motor, inline, at 400 V 15 kW Rated power three-phase motor, inside delta, at 400 V – kW Rated power three-phase motor, inside delta, at 230 V – kW Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at DC 24 – 24 V Display No Torque control No Internal bypass Yes Integrated motor overload protection No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572694 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572708
