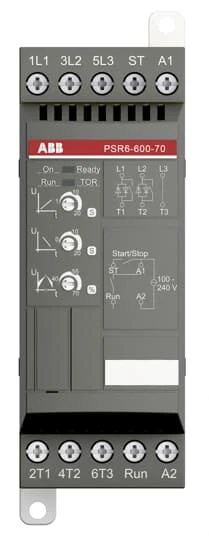

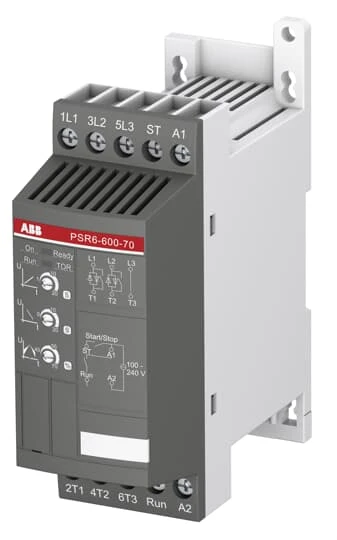

ABB PSR6-600-70 Soft Starter

The softstarter PSR6-600-70 has a rated maximum operational current of 6 A with an operating voltage span from 208…600 V AC. The rated control voltage is between 100…240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has a built-in bypass for easy installation and energy saving. A RUN signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB so mechanical connection kits are available. Another popular option is Fieldbus communication which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3…105 A and can manage up to 100 starts per hour. Common applications are for example pumps fans compressors and conveyors. · · · Two-phase controlled · · Soft start and stop with voltage ramp · · Built-in bypass for energy saving and easy installation · · Easy set-up by three potentiometers · · Non-magnetic 303 stainless steel provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. · · IP65 and IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is CSA, UL certified.
