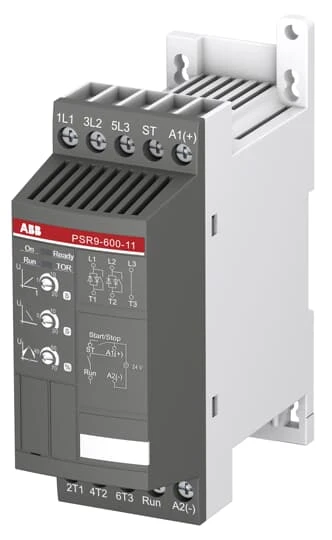

ABB PSR9-600-11 Soft Starter

Description

Technical Specifications  Technical Specifications Soft starter Release class Adjustable Function Single direction Degree of protection (NEMA) 1 Voltage type for actuating AC/DC Degree of protection (IP rating) IP20 Rated power three-phase motor, inside delta, at 400 V – kW Rated power three-phase motor, inside delta, at 230 V – kW Rated power three-phase motor, inline, at 400 V 4 kW Rated power three-phase motor, inline, at 230 V 2.2 kW Rated surrounding temperature without derating 40 °C Rated operation current Ie at 40 °C Tu 9 A Rated control supply voltage at AC 50 Hz 24 – 24 V Rated operating voltage Ue 208 – 600 V Rated control supply voltage at AC 60 Hz 24 – 24 V Rated control supply voltage at DC 24 – 24 V Display No Torque control No Internal bypass Yes Integrated motor overload protection No · Technical Data Sheet – Click to Download · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572699 · DOP: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1572700
