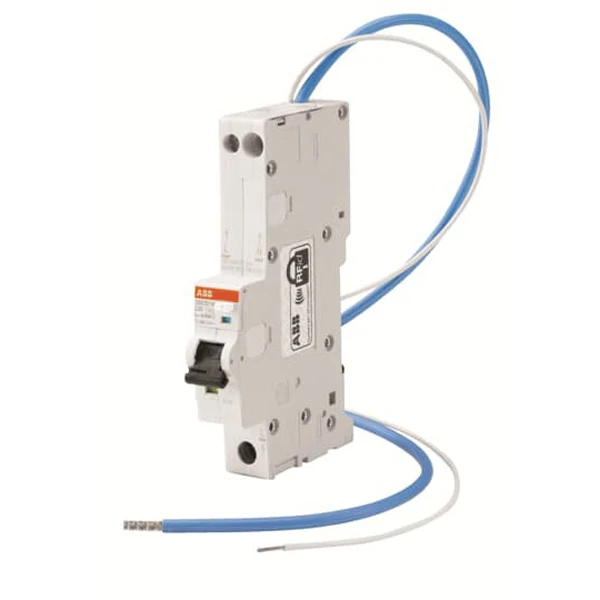

ABB RCBO Dse201m Single Pole+Neutral Class A Type C 16A 30mA 10/15kA

SKU: DSE201MC16A30Go Magpie ID: 5060062343417

ABB DSE201 M RCBO is a 1P+N RCBO with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts (30 mA versions). DSE201 M is equipped with supply neutral wire and functional earth wire. · · · A type residual current · · Right position of neutral terminals · · Complies to IEC 61009-1, IEC 61009-2-2, BS EN 61009-1 and AS/NZS 61009 standards

£97.57inc VAT£81.31 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Leakage current type A Voltage type AC Rated current 16 A Rated voltage 240 V Number of poles (total) 1 Rated fault current 0.03 A Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA · Technical Data Sheet – Click to Download
