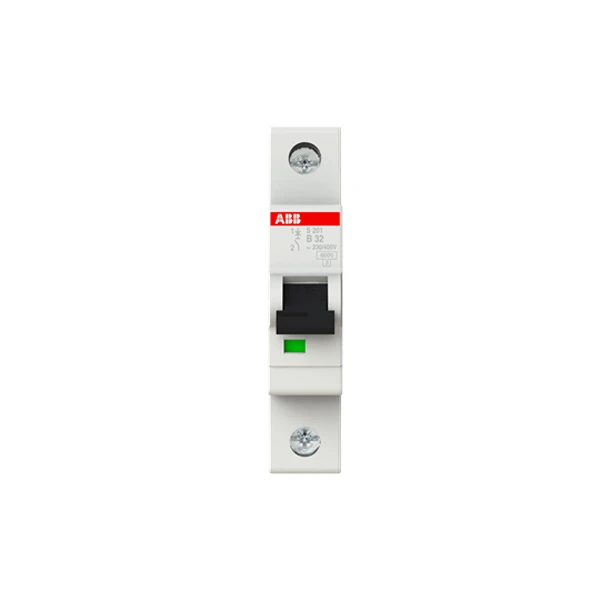

ABB S201-B32 Miniature Circuit Breaker - 1P - B - 32 A
Awaiting product image

ABB S201-B32 Miniature Circuit Breaker – 1P – B – 32 A

£17.59 Incl. VAT

ABB 2CDS251001R0325 1-pole 32A Type B MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S201-B32 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. It is suitable for small inrush or switching surges, heating loads, tungsten lighting. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 6kA · · Colour: Light Grey · · Current Rating: 32A, Voltage Rating: 230 – 240V, Contact Rating: 12V AC/DC (0.1VA) · · Mounting Type: DIN Rail · · Number of Poles: Single Pole · · Terminal Capacity: 25 sq mm · · IP Rating: IP4X (Housing), IP2X (Terminal) · · Number of Switching Operation: >4000 · · Dimensions: 17.5x69x88mm, Weight: 125g

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS251001R0325 Categories: , , , Product Code: 2500178531

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Recess depth 69 mm Rated voltage 230 V Rated insulation voltage Ui 440 V Number of poles (total) 1 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Pollution degree 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Explosion-proof No Additional equipment possible Yes Concurrently switching N-neutral No Flush-mounted installation No
