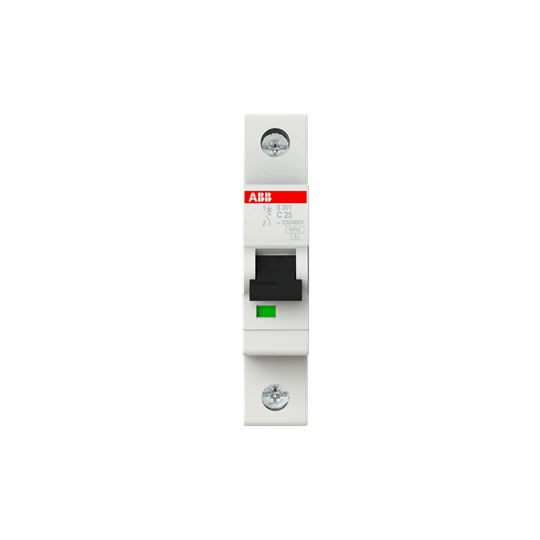

ABB S201-C25 Miniature Circuit Breaker - 1P - C - 25 A - Image 2
ABB S201-C25 Miniature Circuit Breaker - 1P - C - 25 A - Image 3

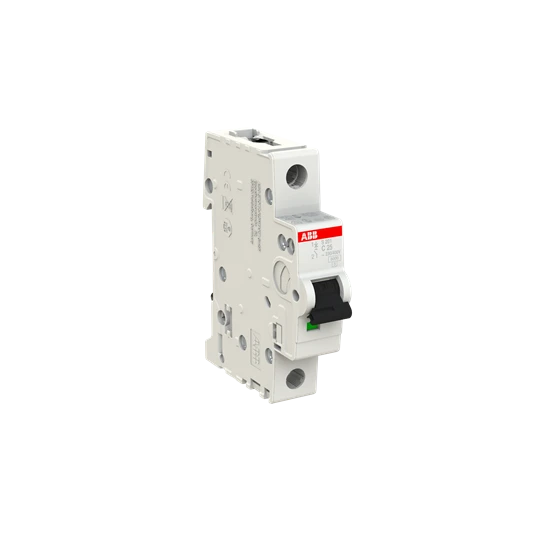

ABB S201-C25 Miniature Circuit Breaker - 1P - C - 25 A - Image 4

ABB S201-C25 Miniature Circuit Breaker – 1P – C – 25 A

£17.69 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (133 V AC) 15 kiloampere

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS251001R0254 Categories: , , Brand: Product Code: 2501376589

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Rated insulation voltage Ui 440 V Over voltage category 3 Pollution degree 3 Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated current 25 A Recess depth 69 mm Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Explosion-proof No Additional equipment possible Yes Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
