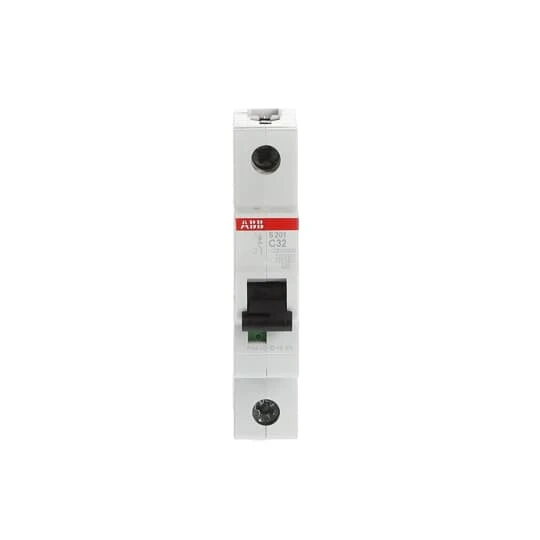

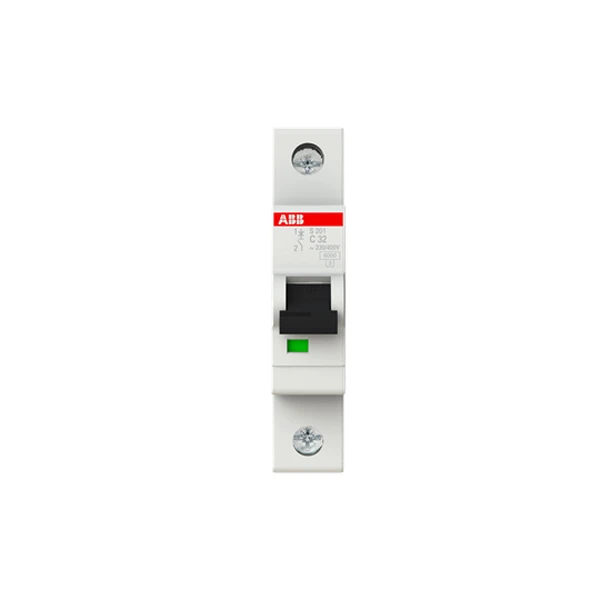

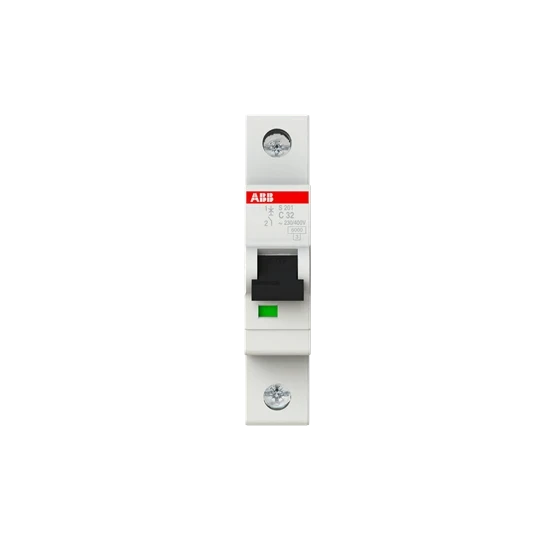

ABB S201-C32 Miniature Circuit Breaker – 1P – C – 32 A
£17.69 Incl. VAT
ABB 2CDS251001R0324 1-pole 32A Type C MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S201-C32 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. It provides moderate switching surges for short durations. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 6kA · · Colour: Light Grey · · Current Rating: 32A, Voltage Rating: 230 – 240V, Contact Rating: 12V AC/DC (0.1VA) · · Mounting Type: DIN Rail · · Number of Poles: Single Pole · · Terminal Capacity: 25 sq mm · · IP Rating: IP4X (Housing), IP2X (Terminal) · · Number of Switching Operation: >4000 · · Dimensions: 17.5x69x88mm, Weight: 125g
Out of Stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 1 Recess depth 69 mm Rated insulation voltage Ui 440 V Number of poles (total) 1 Pollution degree 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Current limiting class 3 Number of protected poles 1 Over voltage category 3 Rated current 32 A Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Additional equipment possible Yes Flush-mounted installation No Explosion-proof No · Technical Data Sheet – Click to Download
