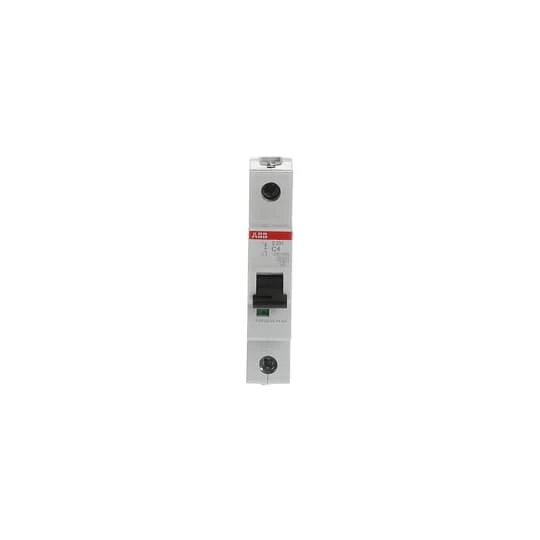

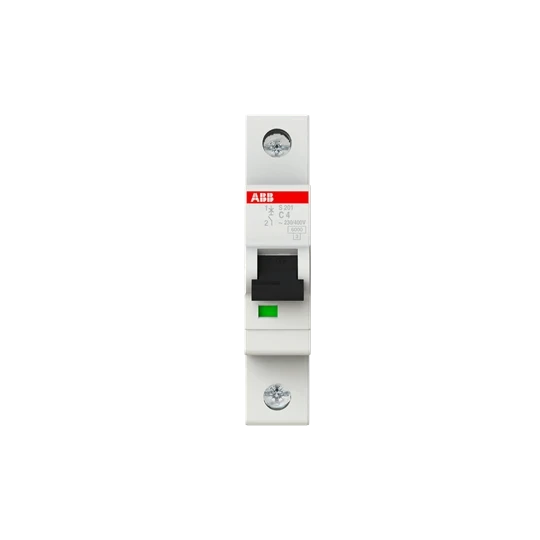

ABB S201-C4 MCB Single Pole – C – 4A
£20.23 Incl. VAT
The Miniature Circuit Breaker is current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro-mechanic tripping mechanism for short circuit protection. MCB of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · Clear contact position indication in red/green · · Operating temperature -25 to 55 °C · · Screw terminals termination · · Energy limiting class is 3 · · Patented twin terminal with captive screws and an increased opening for cables up to max. 35 mm2 · · Busbar slot in the back for best visibility during installation · · Finger-proof
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Rated current 4 A Recess depth 69 mm Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Number of poles (total) 1 Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Explosion-proof No Concurrently switching N-neutral No Suitable for flush-mounted installation No Additional equipment possible Yes Flush-mounted installation No · Technical Data Sheet – Click to Download
