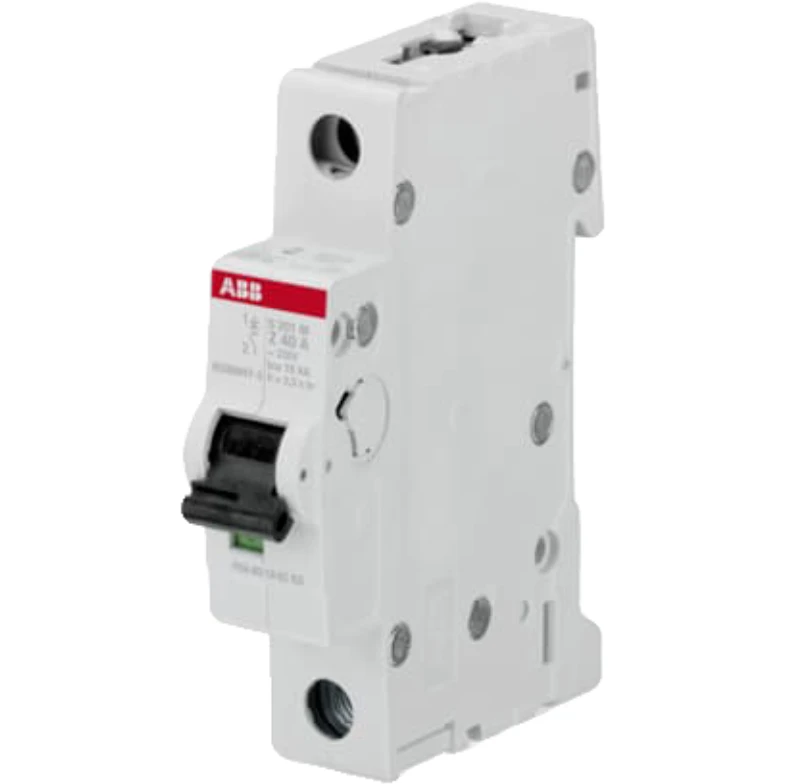

ABB S201M-B13 Miniature Circuit Breaker - 1P - B - 13 A
ABB S201M-B13 Miniature Circuit Breaker - 1P - B - 13 A - Image 2
ABB S201M-B13 Miniature Circuit Breaker - 1P - B - 13 A - Image 3
ABB S201M-B13 Miniature Circuit Breaker - 1P - B - 13 A - Image 4

ABB S201M-B13 Miniature Circuit Breaker – 1P – B – 13 A

£19.80 Incl. VAT

System Pro M Compact S200M Miniature Circuit Breakers Are Current Limiting. They Have Two Different Tripping Mechanisms, The Delayed Thermal Tripping Mechanism For Overload Protection And The Electromechanic Tripping Mechanism For Short Circuit Protection. They Are Available In Different Characteristics (B,C,D,K,Z), Configurations (1P,1P+N,2P,3P,3P+N,4P), Breaking Capacities (Up To 10 KA At 230/400 V AC) And Rated Currents (Up To 63A). All MCBs Of The Product Range S200M Comply With IEC/EN 60898-1 And IEC/EN 609 47-2, Allowing The Use For Residential, Commercial And Industrial Applications. Bottom-Fitting Auxiliary Contact Can Be Mounted On S200M To Save 50% Space. · · · Miniature Circuit Breaker · · (133 V AC) 18.8 kiloampere

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS271001R0135 Categories: , , Product Code: 2500179601

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 13 A Tripping characteristic (type/curve) B Rated insulation voltage Ui 440 V Number of poles (total) 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Pollution degree 3 Over voltage category 3 Recess depth 69 mm Rated voltage 230 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral No Flush-mounted installation No Explosion-proof No Additional equipment possible Yes · Technical Data Sheet – Click to Download
