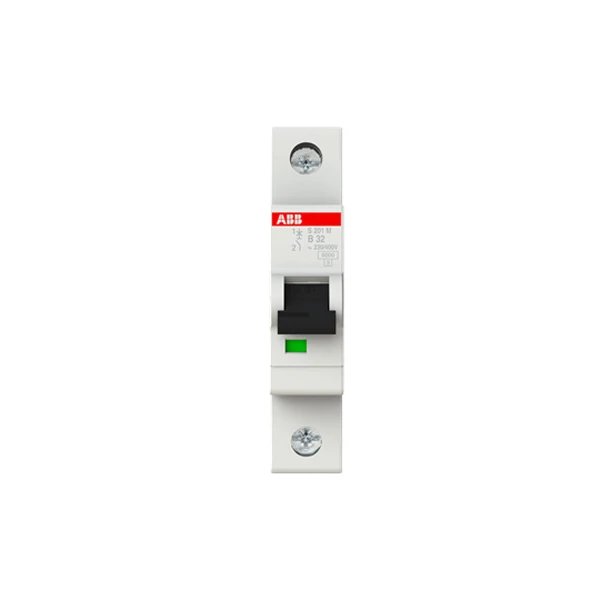

ABB S201M-B32 Miniature Circuit Breaker - 1P - B - 32 A
ABB S201M-B32 Miniature Circuit Breaker - 1P - B - 32 A

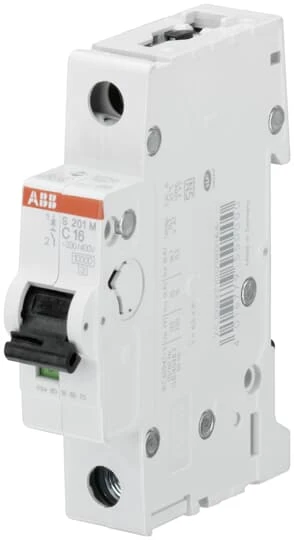

ABB S201M-B32 Miniature Circuit Breaker - 1P - B - 32 A - Image 2
ABB S201M-B32 Miniature Circuit Breaker - 1P - B - 32 A - Image 3
ABB S201M-B32 Miniature Circuit Breaker - 1P - B - 32 A - Image 4

ABB S201M-B32 Miniature Circuit Breaker – 1P – B – 32 A

£17.66 Incl. VAT

ABB 2CDS271001R0325 1 Pole 32A Type B MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S201M-B32 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. It is suitable for small inrush or switching surges, heating loads, tungsten lighting. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 10kA · · Colour: Light Grey · · Current Rating: 32A · · Height: 88mm · · Range: System pro M Compact · · Width: 17.5mm · · Weight: 125g · · Depth: 69mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS271001R0325 Categories: , , Brand: Product Code: 2500179613

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 32 A Rated voltage 230 V Width in number of modular spacings 1 Recess depth 69 mm Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1 Number of protected poles 1 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Additional equipment possible Yes Explosion-proof No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
