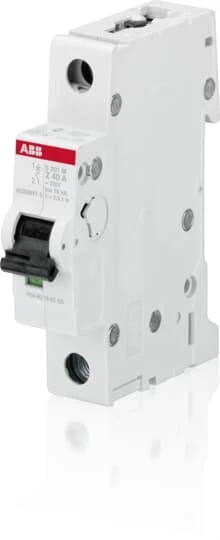

ABB S201M-C10 Miniature Circuit Breaker - 1P - C - 10 A
ABB S201M-C10 Miniature Circuit Breaker - 1P - C - 10 A

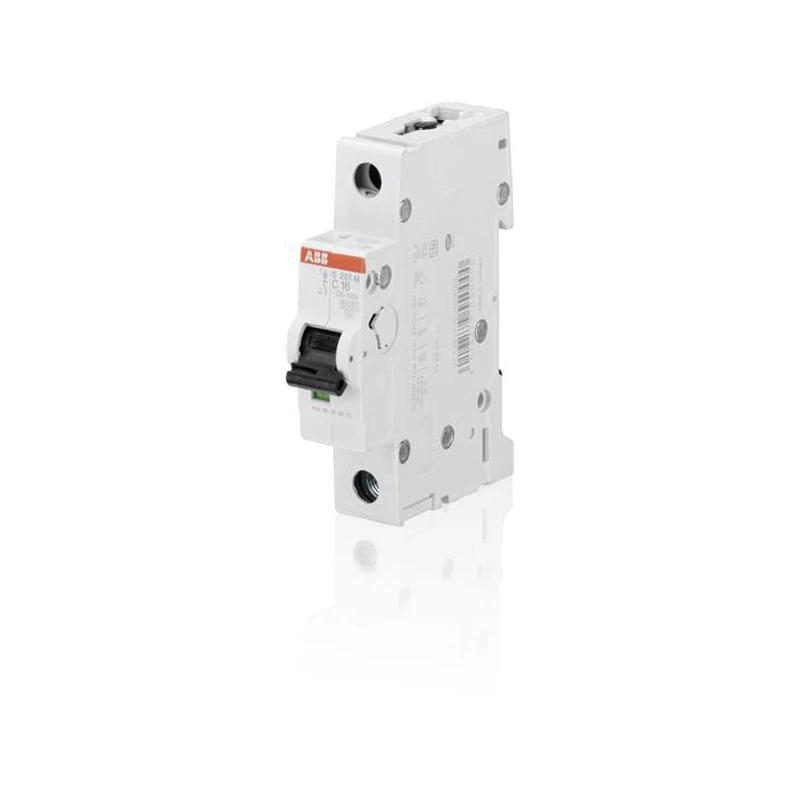

ABB S201M-C10 Miniature Circuit Breaker - 1P - C - 10 A - Image 2
ABB S201M-C10 Miniature Circuit Breaker - 1P - C - 10 A - Image 3
ABB S201M-C10 Miniature Circuit Breaker - 1P - C - 10 A - Image 4

ABB S201M-C10 Miniature Circuit Breaker – 1P – C – 10 A

£13.42 Incl. VAT

The S200 Miniature Circuit Breaker is current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electro-mechanic tripping mechanism for short circuit protection. MCB of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential, commercial and industrial applications. · · · Clear contact position indication in red/green · · Operating temperature -25 to 55 °C · · Screw terminals termination · · Energy limiting class is 3 · · Patented twin terminal with captive screws and an increased opening for cables up to max. 35 mm2 · · Busbar slot in the back for best visibility during installation · · Bottom-fitting auxiliary contact can be mounted saving 50% of space · · Finger-proof

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS271001R0104 Categories: , , Brand: Part Number: 2500179724

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Tripping characteristic (type/curve) C Recess depth 69 mm Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Width in number of modular spacings 1 Number of protected poles 1 Rated insulation voltage Ui 440 V Number of poles (total) 1 Rated voltage 230 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Pollution degree 3 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Suitable for flush-mounted installation No Flush-mounted installation No · Technical Data Sheet – Click to Download
