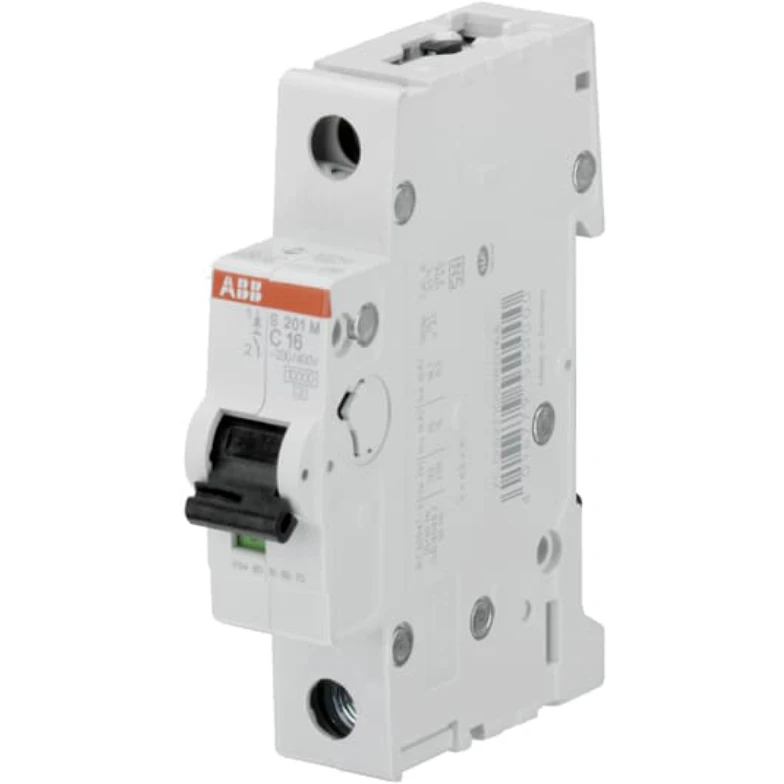

ABB S201M-C4 Miniature Circuit Breaker - 1P - C - 4 A
Awaiting product image

ABB S201M-C4 Miniature Circuit Breaker – 1P – C – 4 A

£22.36 Incl. VAT

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. · · · 4 ampere · · (133 V AC) 18.8 kiloampere

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS271001R0044 Categories: , , Brand: Product Code: 2500179717

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Number of protected poles 1 Number of poles (total) 1 Pollution degree 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Current limiting class 3 Over voltage category 3 Rated current 4 A Recess depth 69 mm Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Flush-mounted installation No
