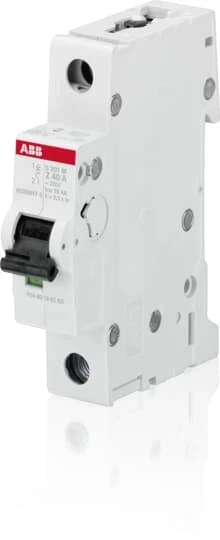

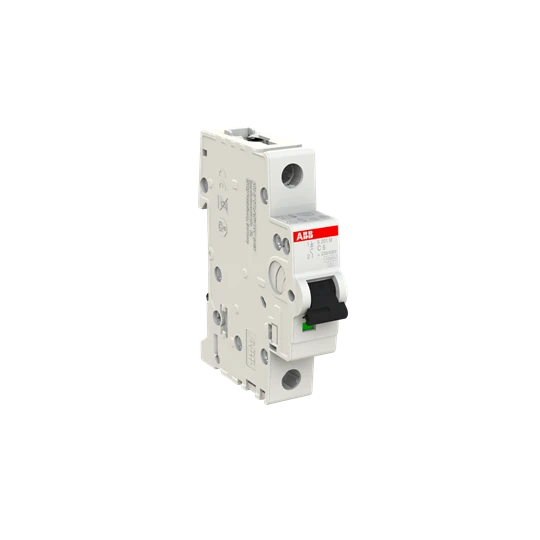

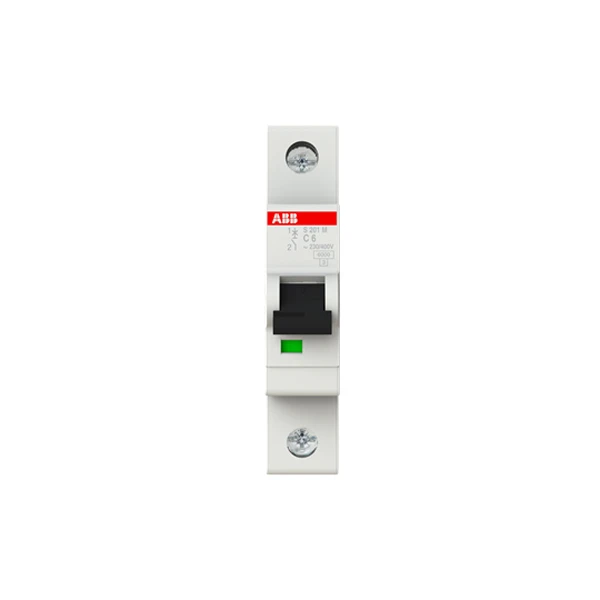

ABB S201M-C6 Miniature Circuit Breaker – 1P – C – 6 A

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 6 A Rated impulse-withstand voltage (Uimp) 4 kV Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated voltage 230 V Recess depth 69 mm Width in number of modular spacings 1 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Over voltage category 3 Current limiting class 3 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of protected poles 1 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Additional equipment possible Yes Explosion-proof No Flush-mounted installation No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
