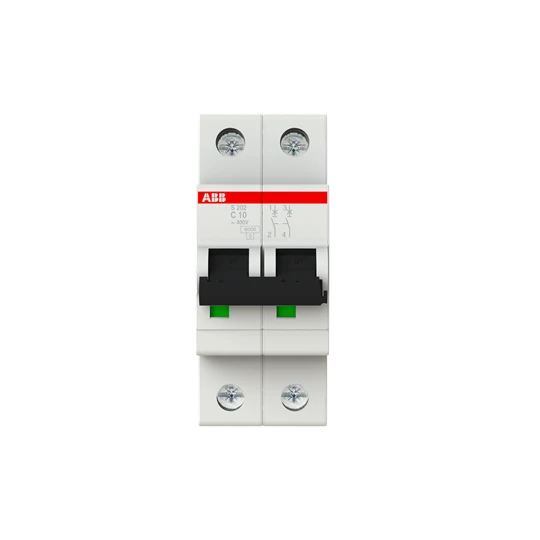

ABB S202-C10 Miniature Circuit Breaker - 2P - C - 10 A
ABB S202-C10 Miniature Circuit Breaker - 2P - C - 10 A
ABB S202-C10 Miniature Circuit Breaker - 2P - C - 10 A - Image 2
ABB S202-C10 Miniature Circuit Breaker - 2P - C - 10 A - Image 3
ABB S202-C10 Miniature Circuit Breaker - 2P - C - 10 A - Image 4

ABB S202-C10 Miniature Circuit Breaker – 2P – C – 10 A

£44.10 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 2 Pole

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS252001R0104 Categories: , , Brand: Product Code: 2501531587

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated voltage 400 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Recess depth 69 mm Width in number of modular spacings 2 Rated insulation voltage Ui 440 V Number of protected poles 2 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Current limiting class 3 Over voltage category 3 Number of poles (total) 2 Rated current 10 A Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Additional equipment possible Yes Flush-mounted installation No Explosion-proof No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
