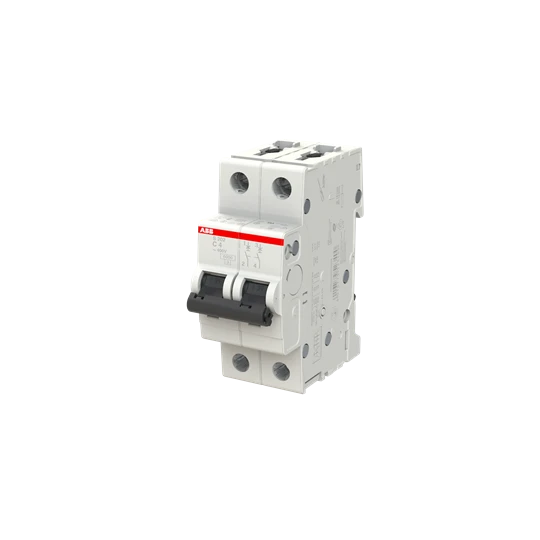

ABB S202-C4 Miniature Circuit Breaker - 2P - C - 4 A
ABB S202-C4 Miniature Circuit Breaker - 2P - C - 4 A
ABB S202-C4 Miniature Circuit Breaker - 2P - C - 4 A - Image 2
ABB S202-C4 Miniature Circuit Breaker - 2P - C - 4 A - Image 3

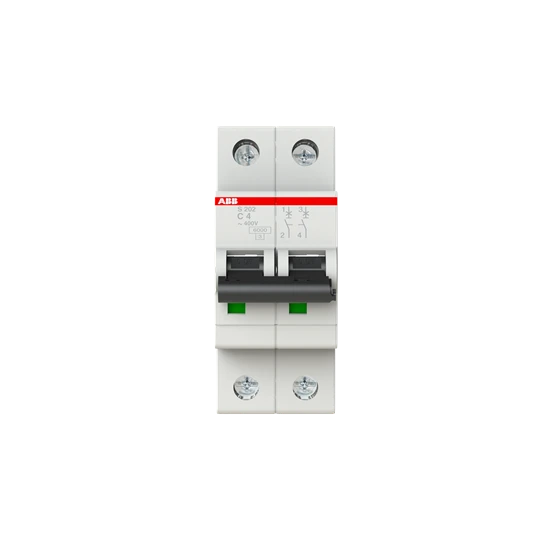

ABB S202-C4 Miniature Circuit Breaker - 2P - C - 4 A - Image 4

ABB S202-C4 Miniature Circuit Breaker – 2P – C – 4 A

£53.71 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · 4 ampere · · (230 V AC) 15 kiloampere · · 2 Pole

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS252001R0044 Categories: , , Brand: Part Number: 2501377550

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 69 mm Rated current 4 A Number of protected poles 2 Rated insulation voltage Ui 440 V Number of poles (total) 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Current limiting class 3 Over voltage category 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Frequency 50 – 60 Hz Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 400 V Pollution degree 3 Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Explosion-proof No Additional equipment possible Yes Concurrently switching N-neutral No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
