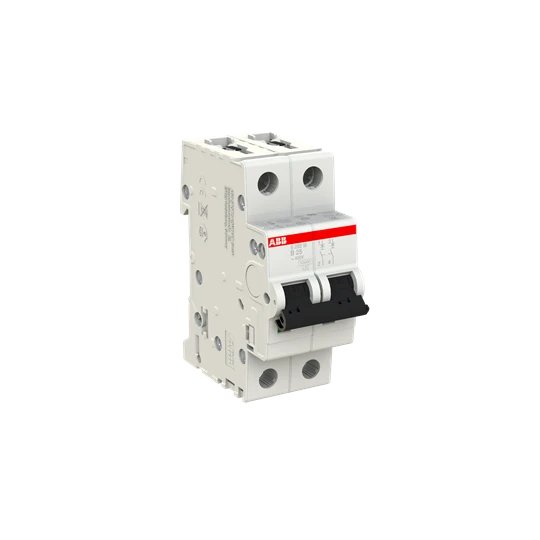

ABB S202M-B25 Miniature Circuit Breaker - 2P - B - 25 A - Image 4

ABB S202M-B25 Miniature Circuit Breaker – 2P – B – 25 A

£64.61 Incl. VAT

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. · · · 25 ampere · · (230 V AC) 7.5 kiloampere · · 2 Pole

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS272001R0255 Categories: , , Brand: Part Number: 2500179822

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 25 A Tripping characteristic (type/curve) B Recess depth 69 mm Rated voltage 400 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 2 Number of protected poles 2 Pollution degree 3 Over voltage category 3 Rated insulation voltage Ui 440 V Width in number of modular spacings 2 Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Additional equipment possible Yes Concurrently switching N-neutral No Explosion-proof No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
