ABB S202M-B50 Miniature Circuit Breaker - 2P - B - 50 A
ABB S202M-B50 Miniature Circuit Breaker - 2P - B - 50 A

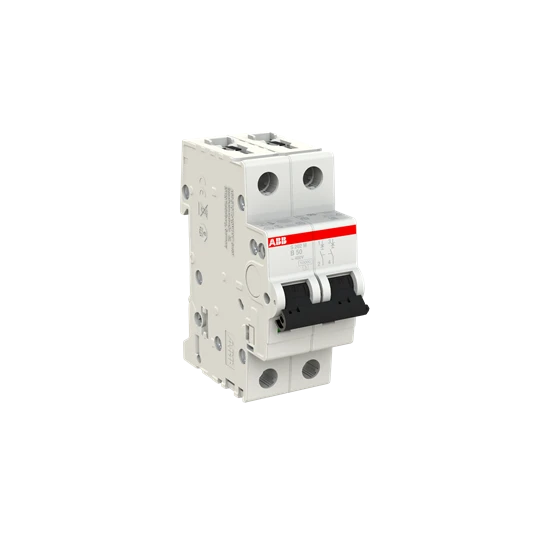

ABB S202M-B50 Miniature Circuit Breaker - 2P - B - 50 A - Image 2
ABB S202M-B50 Miniature Circuit Breaker - 2P - B - 50 A - Image 3
ABB S202M-B50 Miniature Circuit Breaker - 2P - B - 50 A - Image 4

ABB S202M-B50 Miniature Circuit Breaker – 2P – B – 50 A

£77.10 Incl. VAT

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. · · · 50 ampere · · (133 V AC) 15 kiloampere

2 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS272001R0505 Categories: , , Brand: Part Number: 2500179825

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 50 A Recess depth 69 mm Rated voltage 400 V Tripping characteristic (type/curve) B Width in number of modular spacings 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Current limiting class 3 Over voltage category 3 Pollution degree 3 Rated insulation voltage Ui 440 V Number of protected poles 2 Number of poles (total) 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Explosion-proof No Additional equipment possible Yes Suitable for flush-mounted installation No Concurrently switching N-neutral No
