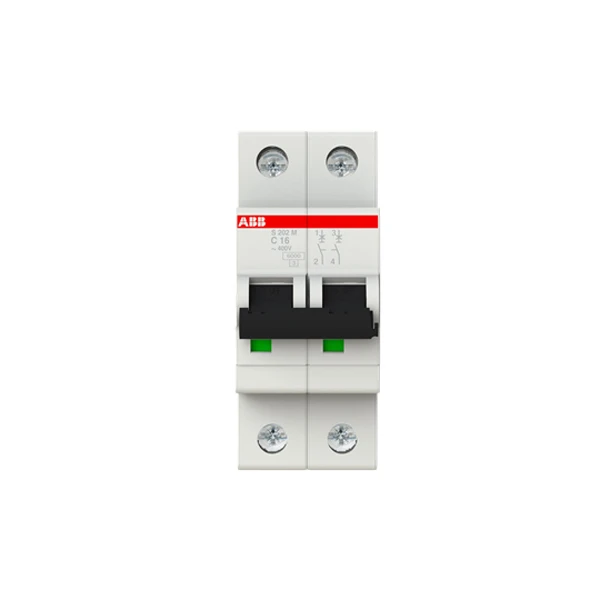

ABB S202M-C16 Miniature Circuit Breaker - 2P - C - 16 A
Awaiting product image

ABB S202M-C16 Miniature Circuit Breaker – 2P – C – 16 A

£57.14 Incl. VAT

ABB 2CDS272001R0164 2 Pole 16A Type C MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S202M-C16 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. It provides moderate switching surges for short durations. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 10kA · · Colour: Light Grey · · Current Rating: 16A · · Height: 88mm · · Range: System pro M Compact · · Width: 35mm · · Weight: 250g · · Depth: 69mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS272001R0164 Categories: , , , Product Code: 2500179879

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 16 A Recess depth 69 mm Rated voltage 400 V Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 2 Current limiting class 3 Over voltage category 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Flush-mounted installation No
