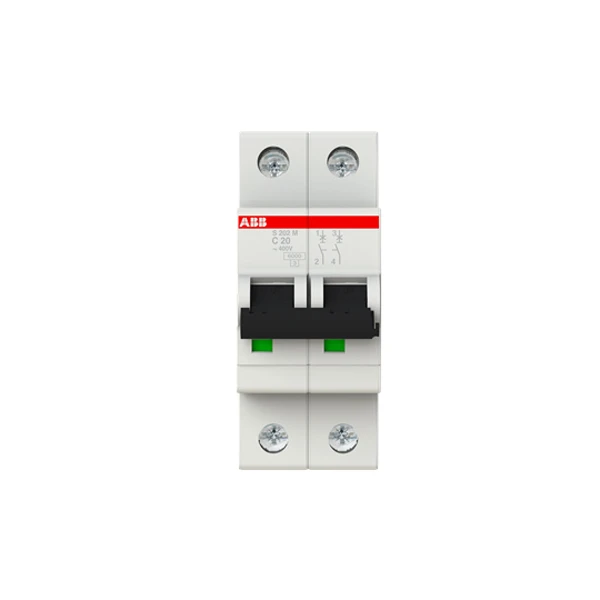

ABB S202M-C20 Miniature Circuit Breaker – 2P – C – 20 A
£57.14 Incl. VAT
ABB 2CDS272001R0204 2 Pole 20A Type C MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S202M-C20 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. It provides moderate switching surges for short durations. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 10kA · · Colour: Light Grey · · Current Rating: 20A · · Height: 88mm · · Range: System pro M Compact · · Width: 35mm · · Weight: 250g · · Depth: 69mm
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Recess depth 69 mm Rated current 20 A Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Over voltage category 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Number of protected poles 2 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Current limiting class 3 Pollution degree 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated insulation voltage Ui 440 V Rated voltage 400 V Number of poles (total) 2 Width in number of modular spacings 2 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Additional equipment possible Yes Concurrently switching N-neutral No Explosion-proof No
