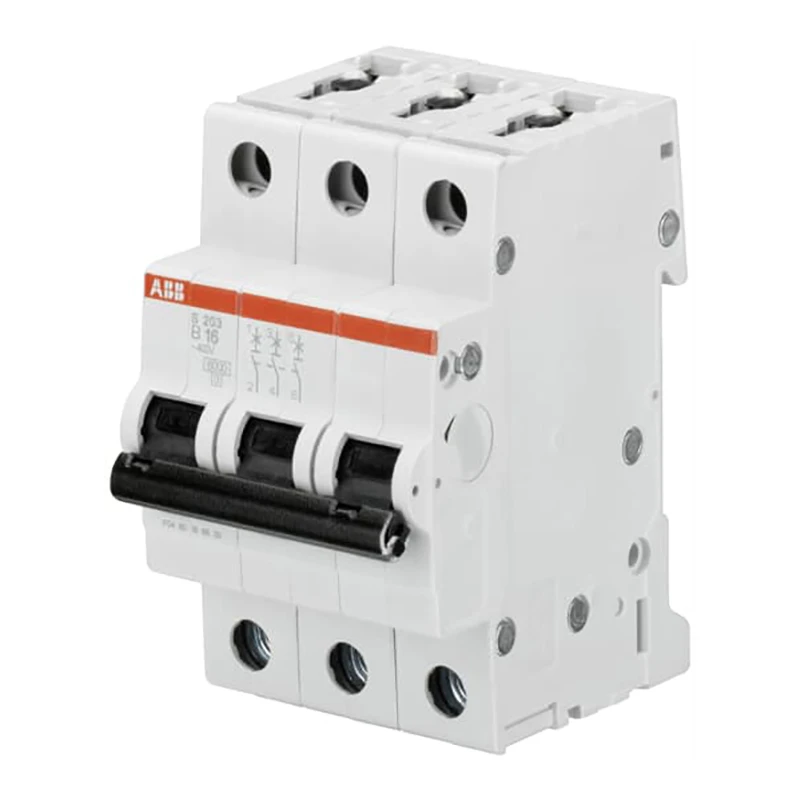

ABB S203-B16 Miniature Circuit Breaker – 3P – B – 16 A
£67.36 Incl. VAT
ABB 2CDS253001R0165 3 Pole 16A Type B MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S203-B16 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. It is suitable for small inrush or switching surges, heating loads, tungsten lighting. It has metal framed trip-free switching mechanism. · · · 16 ampere · · (230 V AC) 15 kiloampere · · 3 Pole
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated voltage 400 V Width in number of modular spacings 3 Rated current 16 A Recess depth 69 mm Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Rated insulation voltage Ui 440 V Number of protected poles 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 3 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Additional equipment possible Yes Explosion-proof No Concurrently switching N-neutral No Flush-mounted installation No
