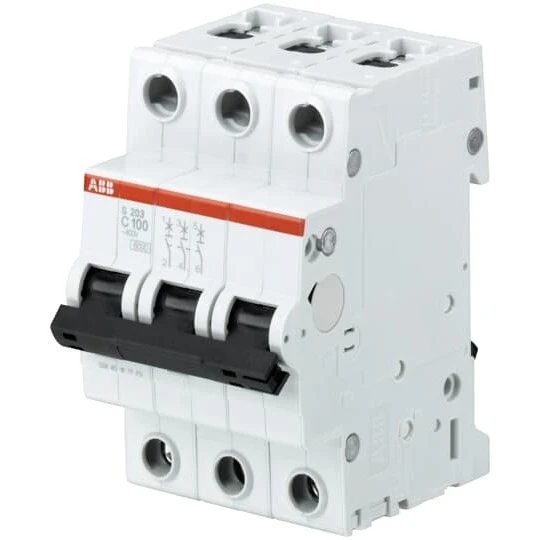

ABB S203-C100 Miniature Circuit Breaker - 3P - C - 100 A
ABB S203-C100 Miniature Circuit Breaker - 3P - C - 100 A
ABB S203-C100 Miniature Circuit Breaker - 3P - C - 100 A - Image 2

ABB S203-C100 Miniature Circuit Breaker – 3P – C – 100 A

£268.79 Incl. VAT

S203C100 3P MCB C100 6kA S203-C100 MCB C-Char., 6kA, 100A, 3 · · · Number of Poles 3 · · Rated Current (In) 100 A · · Standards IEC/EN 60898-1IEC/EN 60947-2 · · Rated Frequency (f) 50/60 Hz

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS253001R0824 Category: Brand: Product Code: 2501049917

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 400 V Width in number of modular spacings 3 Recess depth 69 mm Rated current 100 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Over voltage category 3 Current limiting class 3 Rated insulation voltage Ui 440 V Pollution degree 3 Number of poles (total) 3 Number of protected poles 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 6 kA Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 4 – 35 mm² Connectable conductor cross section solid-core 2.5 – 50 mm² Additional equipment possible Yes Explosion-proof No Concurrently switching N-neutral No Flush-mounted installation No
