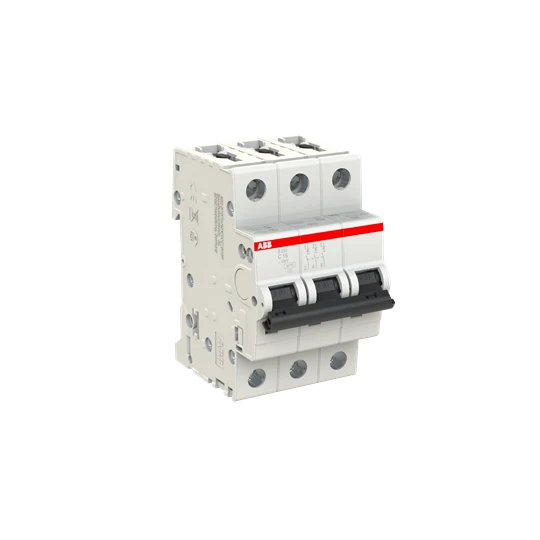

ABB S203-C16 Miniature Circuit Breaker - 3P - C - 16A
ABB S203-C16 Miniature Circuit Breaker - 3P - C - 16A

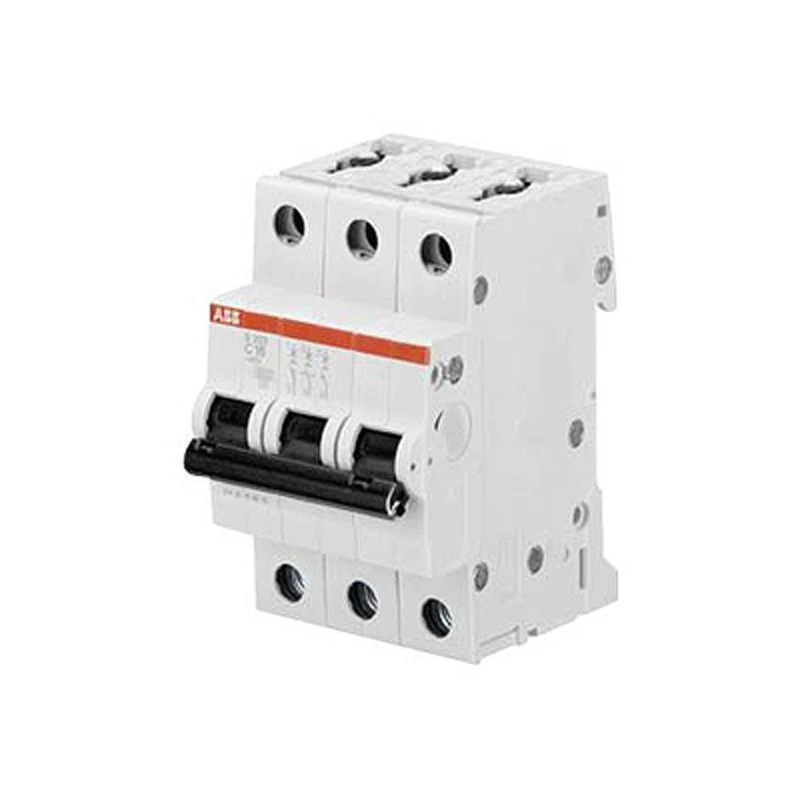

ABB S203-C16 Miniature Circuit Breaker - 3P - C - 16A - Image 2
ABB S203-C16 Miniature Circuit Breaker - 3P - C - 16A - Image 3
ABB S203-C16 Miniature Circuit Breaker - 3P - C - 16A - Image 4

ABB S203-C16 Miniature Circuit Breaker – 3P – C – 16A

£70.13 Incl. VAT

ABB 2CDS253001R0164 3 Pole 16A Type C MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S203-C16 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. It provides moderate switching surges for short durations. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 6kA · · Colour: Light Grey · · Current Rating: 16A · · Height: 88mm · · Range: System pro M Compact · · Width: 52.5mm · · Weight: 375g · · Depth: 69mm

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS253001R0164 Categories: , , Brand: Part Number: 2500675681

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated voltage 400 V Recess depth 69 mm Rated impulse-withstand voltage (Uimp) 4 kV Rated current 16 A Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated insulation voltage Ui 440 V Number of poles (total) 3 Number of protected poles 3 Pollution degree 3 Current limiting class 3 Over voltage category 3 Width in number of modular spacings 3 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Suitable for flush-mounted installation No Flush-mounted installation No · Technical Data Sheet – Click to Download
