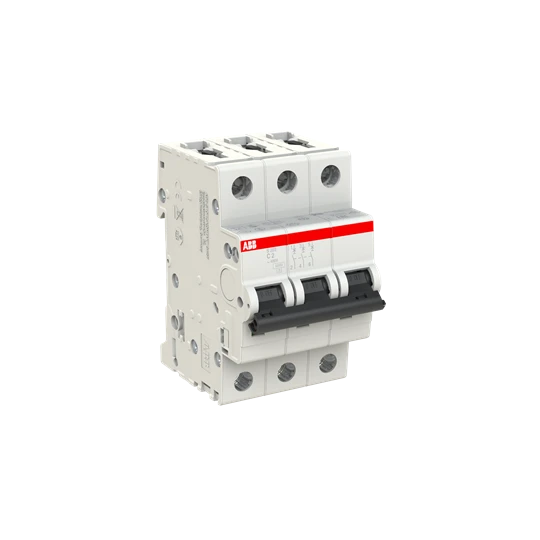

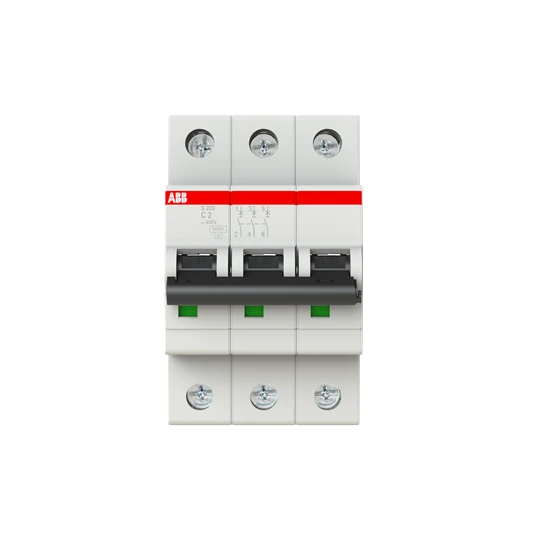

ABB S203-C2 Miniature Circuit Breaker – 3P – C – 2A
£75.32 Incl. VAT
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 3 Pole
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Recess depth 69 mm Rated insulation voltage Ui 440 V Pollution degree 3 Rated voltage 400 V Over voltage category 3 Number of protected poles 3 Current limiting class 3 Width in number of modular spacings 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Concurrently switching N-neutral No Connectable conductor cross section solid-core 0.75 – 35 mm² Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -25 – 55 °C Frequency 50 – 60 Hz Rated current 2 A Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Additional equipment possible Yes Suitable for flush-mounted installation No Explosion-proof No Flush-mounted installation No · Technical Data Sheet – Click to Download
