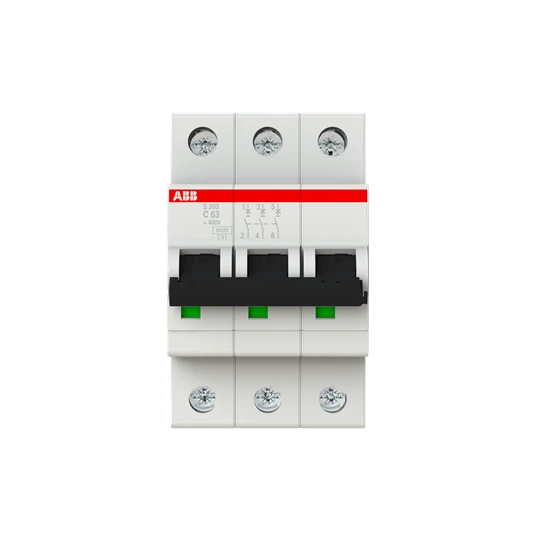

ABB S203-C63 Miniature Circuit Breaker – 3P – C – 63A
£79.09 Incl. VAT
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 3 Pole
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 63 A Recess depth 69 mm Rated insulation voltage Ui 440 V Number of protected poles 3 Pollution degree 3 Rated voltage 400 V Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Width in number of modular spacings 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Number of poles (total) 3 Over voltage category 3 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Concurrently switching N-neutral No Explosion-proof No Additional equipment possible Yes Suitable for flush-mounted installation No Flush-mounted installation No · Technical Data Sheet – Click to Download
