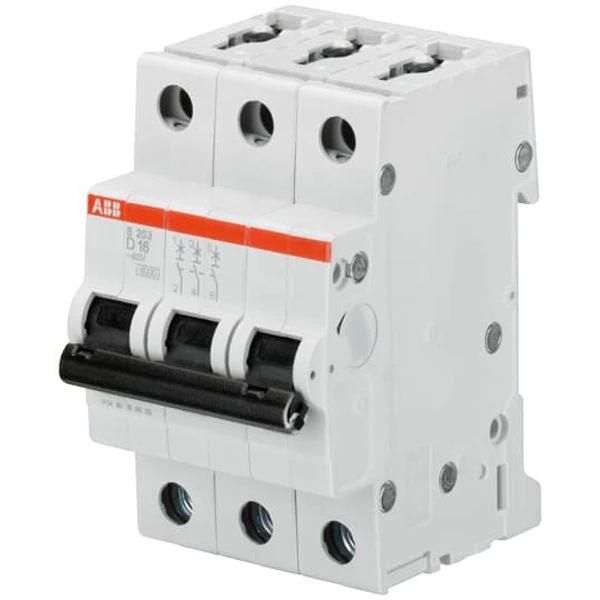

ABB S203-D16 Miniature Circuit Breaker - 3P - D - 16 A
Awaiting product image

ABB S203-D16 Miniature Circuit Breaker – 3P – D – 16 A

£69.90 Incl. VAT

ABB 2CDS253001R0161 3 Pole 16A Type D MCB with Failsafe bi-directional cylinder-lift screw terminal. This System pro M compact S203-D16 MCB is current limiting device. It is comply with IEC/EN 60898-1 and IEC/EN 609 47-2. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. It is suitable for high inrush applications. It has metal framed trip-free switching mechanism. · · · Breaking Capacity: 6kA · · Colour: Light Grey · · Current Rating: 16A · · Height: 88mm · · Range: System pro M Compact · · Width: 52.5mm · · Weight: 375g · · Depth: 69mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS253001R0161 Categories: , , , Product Code: 2500179922

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Recess depth 69 mm Rated current 16 A Width in number of modular spacings 3 Rated voltage 400 V Pollution degree 3 Rated insulation voltage Ui 440 V Number of protected poles 3 Number of poles (total) 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Current limiting class 3 Over voltage category 3 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Flush-mounted installation No Explosion-proof No Additional equipment possible Yes Concurrently switching N-neutral No
