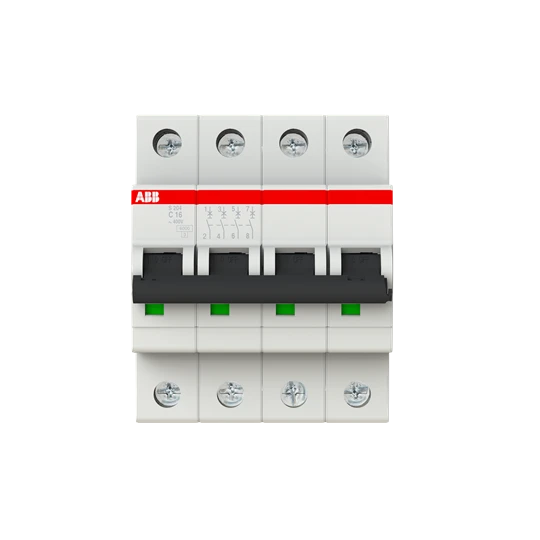

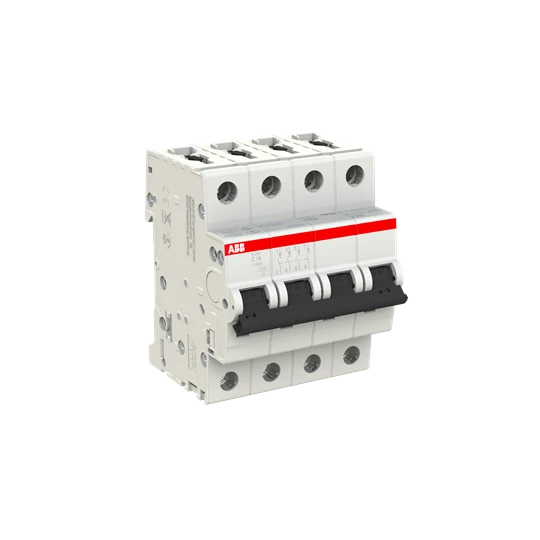

ABB S204-C16 Miniature Circuit Breaker – 4P – C – 16 A

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Recess depth 69 mm Rated current 16 A Rated voltage 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 4 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Pollution degree 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated insulation voltage Ui 440 V Current limiting class 3 Number of protected poles 4 Over voltage category 3 Width in number of modular spacings 4 Frequency 50 – 60 Hz Ambient temperature during operating -25 – 55 °C Connectable conductor cross section solid-core 0.75 – 35 mm² Connectable conductor cross section multi-wired 0.75 – 25 mm² Explosion-proof No Additional equipment possible Yes Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
