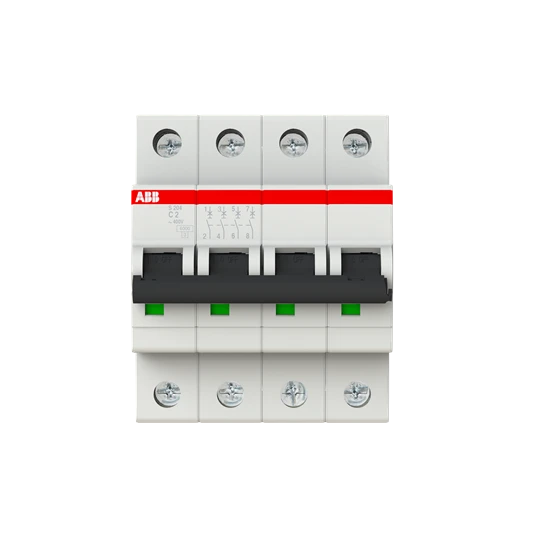

ABB S204-C2 MCB 4 Pole Type C 2A
ABB S204-C2 MCB 4 Pole Type C 2A
ABB S204-C2 MCB 4 Pole Type C 2A - Image 2
ABB S204-C2 MCB 4 Pole Type C 2A - Image 3
ABB S204-C2 MCB 4 Pole Type C 2A - Image 4

ABB S204-C2 MCB 4 Pole Type C 2A

£208.93 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS254001R0024 Categories: , , Brand: Part Number: 2501531590

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 2 A Tripping characteristic (type/curve) C Rated insulation voltage Ui 440 V Current limiting class 3 Over voltage category 3 Pollution degree 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 4 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Recess depth 69 mm Rated voltage 400 V Width in number of modular spacings 4 Number of protected poles 4 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible Yes Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
