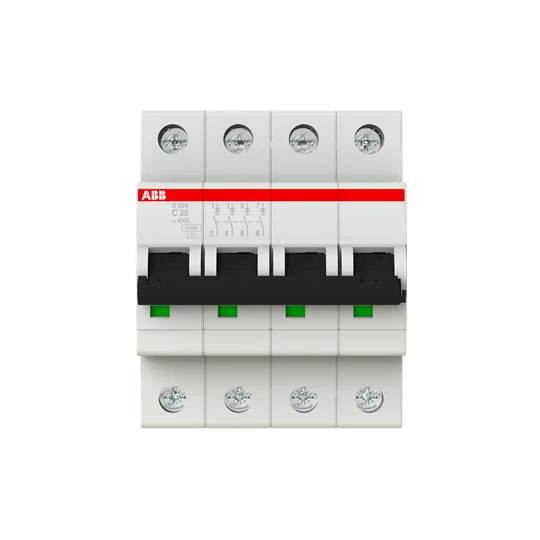

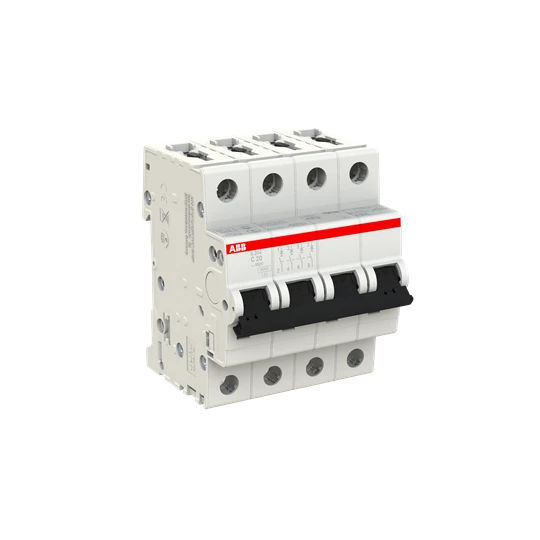

ABB S204-C20 MCB 4 Pole Type C 20A

SKU: 2CDS254001R0204Go Magpie ID: 5060062376239

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole · · Rated Frequency (f): 50 / 60 Hz · · Power Loss: 10 W at Rated Operating Conditions per Pole 2.5 W · · Contact Position Indication: Red ON / Green OFF · · Electrical Endurance: 20000 AC cycle · · Tightening Torque: 2.8 N·m · · Mounting Type: DIN-Rail · · Degree of Protection: IP20,IP40, Enclosure with Cover IP40

£208.93inc VAT£174.11 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Recess depth 69 mm Rated insulation voltage Ui 440 V Tripping characteristic (type/curve) C Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Pollution degree 3 Rated voltage 400 V Width in number of modular spacings 4 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 4 Current limiting class 3 Number of protected poles 4 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 0.75 – 35 mm² Connectable conductor cross section multi-wired 0.75 – 25 mm² Additional equipment possible Yes Ambient temperature during operating -25 – 55 °C Flush-mounted installation No Concurrently switching N-neutral No Suitable for flush-mounted installation No Explosion-proof No · Technical Data Sheet – Click to Download
