image-5313
Product image supplied by the manufacturer

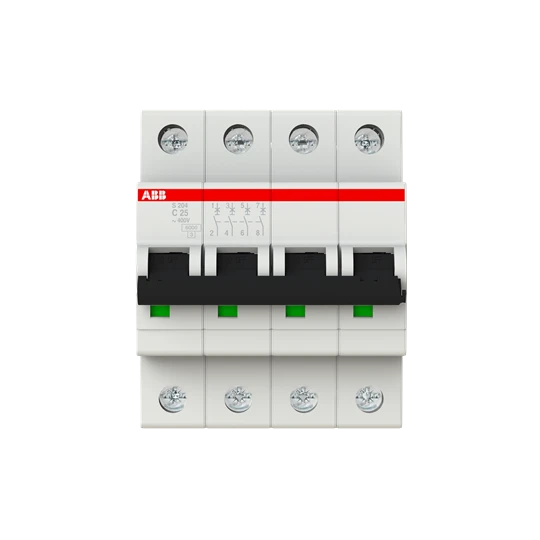

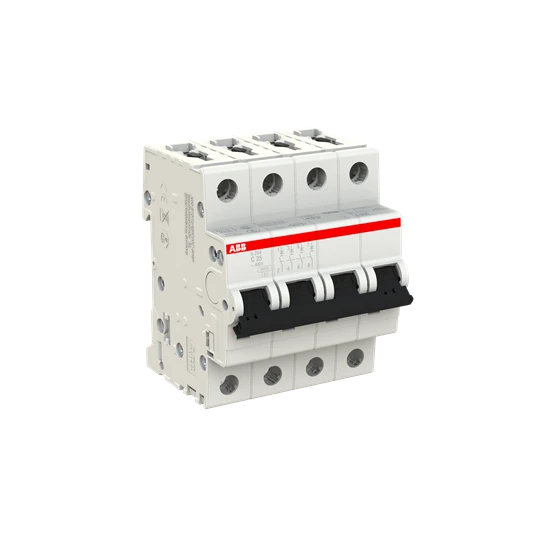

ABB S204-C25 MCB – 4P – C – 25A

SKU: 2CDS254001R0254Go Magpie ID: 5060062359642

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole · · Frequency (f): 50 Hz · · Power Loss: 12.8 W at Rated Operating Conditions per Pole 3.2 W · · Contact Position Indication: Red ON / Green OFF · · Tightening Torque: 2.8 N·m · · Mounting Type: DIN-Rail · · Reference Ambient Air Temperature: 30 °C · · Degree of Protection: IP20,IP40,Enclosure with Cover IP40

£208.93inc VAT£174.11 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 25 A Tripping characteristic (type/curve) C Recess depth 69 mm Rated insulation voltage Ui 440 V Width in number of modular spacings 4 Rated voltage 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 4 Over voltage category 3 Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 60 Hz Current limiting class 3 Number of poles (total) 4 Pollution degree 3 Explosion-proof No Connectable conductor cross section solid-core 0.75 – 35 mm² Additional equipment possible Yes Suitable for flush-mounted installation No Flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
