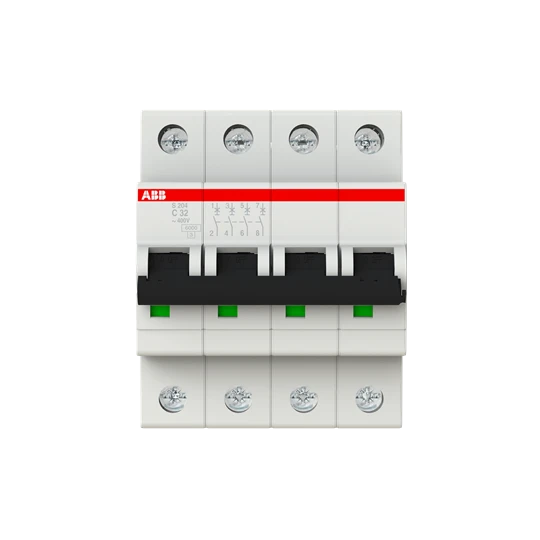

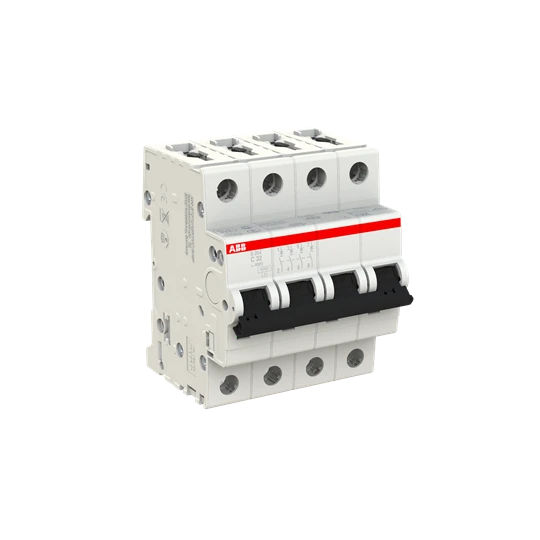

ABB S204-C32 Miniature Circuit Breaker – 4P – C – 32 A
£179.09 Incl. VAT
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole · · Dielectric Test Voltage: 50/60 Hz, 1 min: 2 kV · · Power Loss: 14.8 W at Rated Operating Conditions per Pole 3.7 W · · Electrical Endurance: 10000 AC cycle · · Tightening Torque: 2.8 N·m · · Mounting Type: DIN-Rail · · Wire Stripping Length: 12.5 mm · · Reference Ambient Air Temperature: 30 °C
Out of stock
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Recess depth 69 mm Rated current 32 A Rated insulation voltage Ui 440 V Number of protected poles 4 Rated voltage 400 V Over voltage category 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Pollution degree 3 Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Frequency 50 – 60 Hz Width in number of modular spacings 4 Current limiting class 3 Number of poles (total) 4 Explosion-proof No Flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
