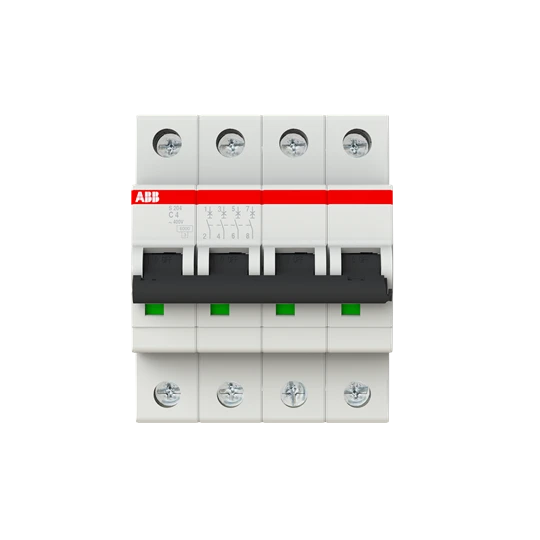

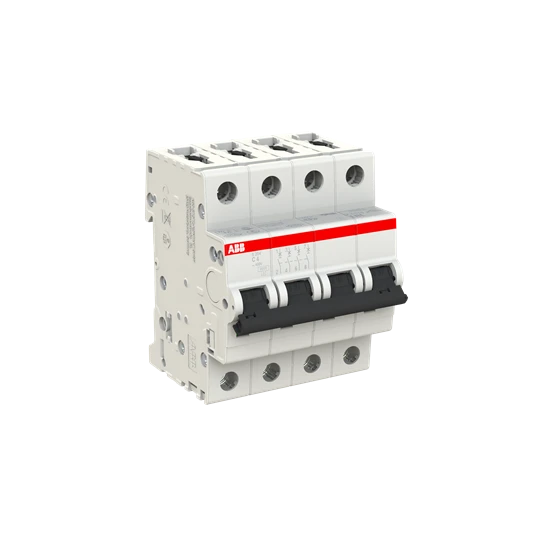

ABB S204-C4 Miniature Circuit Breaker – 4P – C – 4A

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole · · Frequency (f): 50 Hz · · Power Loss: 7.2 W at Rated Operating Conditions per Pole 1.8 W · · Contact Position Indication: Red ON / Green OFF · · Electrical Endurance: 20000 AC cycle · · Tightening Torque: 2.8 N·m · · Mounting Type: DIN-Rail · · Degree of Protection: IP20, IP40, Enclosure with Cover IP40
