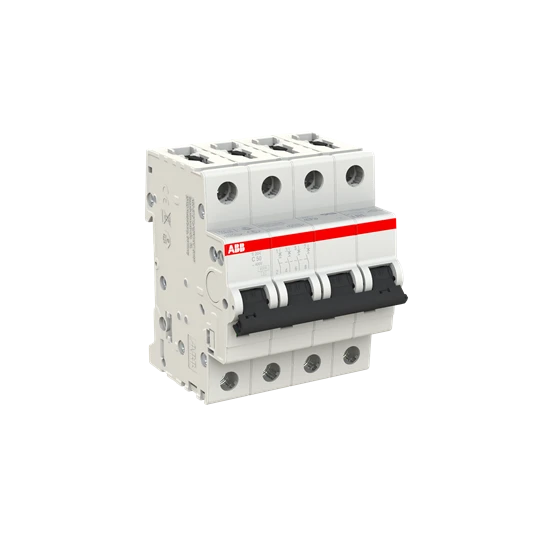

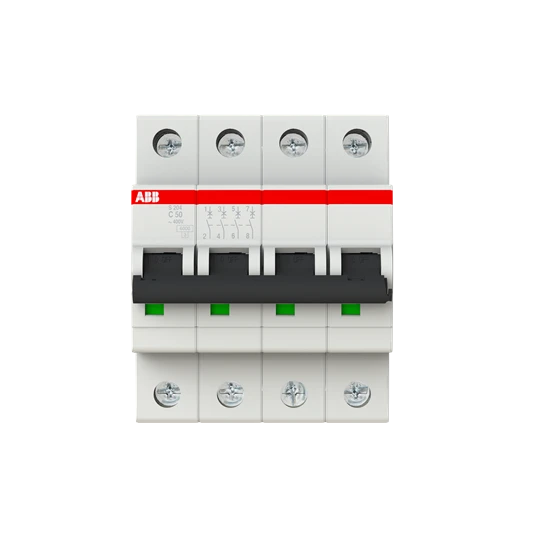

ABB S204-C50 Miniature Circuit Breaker - 4P - C - 50 A
ABB S204-C50 Miniature Circuit Breaker - 4P - C - 50 A
ABB S204-C50 Miniature Circuit Breaker - 4P - C - 50 A - Image 2
ABB S204-C50 Miniature Circuit Breaker - 4P - C - 50 A - Image 3
ABB S204-C50 Miniature Circuit Breaker - 4P - C - 50 A - Image 4

ABB S204-C50 Miniature Circuit Breaker – 4P – C – 50 A

£213.41 Incl. VAT

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B C D K Z) configurations (1P 1P+N 2P 3P 3P+N 4P) breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1 IEC/EN 60947-2 UL1077 allowing the use for residential commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. · · · IP20 · · (230 V AC) 15 kiloampere · · 4 Pole

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS254001R0504 Categories: , , Brand: Part Number: 2501531596

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Tripping characteristic (type/curve) C Number of poles (total) 4 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of protected poles 4 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 10 kA Pollution degree 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 20 kA Rated voltage 400 V Rated current 50 A Width in number of modular spacings 4 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V – kA Rated insulation voltage Ui 440 V Over voltage category 3 Recess depth 69 mm Frequency 50 – 60 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Connectable conductor cross section solid-core 0.75 – 35 mm² Ambient temperature during operating -25 – 55 °C Explosion-proof No Flush-mounted installation No Suitable for flush-mounted installation No Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
