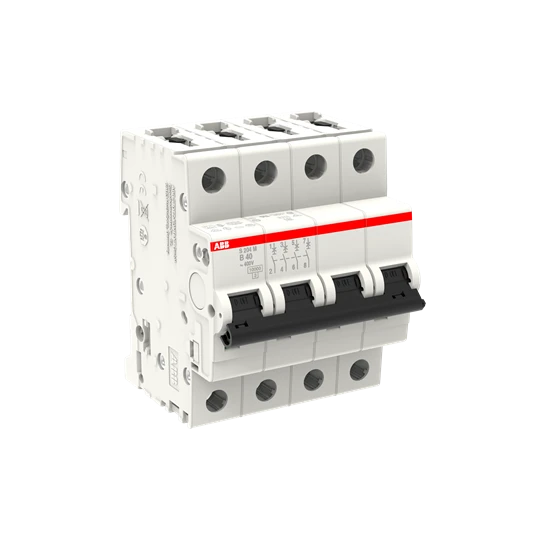

ABB S204M-B40 Miniature Circuit Breaker - 4P - B - 40 A - Image 4

ABB S204M-B40 Miniature Circuit Breaker – 4P – B – 40 A

£180.64 Incl. VAT

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space. · · · 40 ampere · · (230 V AC) 7.5 kiloampere · · 4 Pole

2 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2CDS274001R0405 Categories: , , Brand: Part Number: 2500243170

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 400 V Rated current 40 A Tripping characteristic (type/curve) B Recess depth 69 mm Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Pollution degree 3 Rated insulation voltage Ui 440 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 4 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 4 Over voltage category 3 Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -25 – 55 °C Frequency 50 – 60 Hz Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 25 kA Width in number of modular spacings 4 Current limiting class 3 Connectable conductor cross section solid-core 0.75 – 35 mm² Explosion-proof No Suitable for flush-mounted installation No Additional equipment possible Yes Concurrently switching N-neutral No Flush-mounted installation No
